15kw PLC control Paper Honeycomb Machine Board Slitting And Cross Cutting Machine

I'm Online Chat Now

15kw PLC control Paper Honeycomb Machine Board Slitting And Cross Cutting Machine

15kw PLC control Paper Honeycomb Machine Board Slitting And Cross Cutting Machine
15kw PLC control Paper Honeycomb Machine Board Slitting And Cross Cutting Machine 15kw PLC control Paper Honeycomb Machine Board Slitting And Cross Cutting Machine

Large Image :  15kw PLC control Paper Honeycomb Machine Board Slitting And Cross Cutting Machine

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: HBSC-3400D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negociate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 days
Payment Terms: T/T
Supply Ability: 5 sets /mounth

15kw PLC control Paper Honeycomb Machine Board Slitting And Cross Cutting Machine

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Max. Slitting Carboard Width: 2100mm Min. Slitting Width For Single Row Slitting Blades: 120mm
Slitting Thickness For Honeycomb Board: 8-100mm
High Light:

15kw Paper Honeycomb Machine

,

PLC Control Paper Honeycomb Machine

Honeycomb board slitting and cross cutting machine

Model: HBSC-3400D



Main performance:

  • Dual row top&bottom slitting blade structure for small piece cutting
  • Computer slitting blade regulating
  • PLC control cross cutting blade
  • Order data input quick and easy, order change time around 20 seconds
  • Both auto and manual grinding method are available
  • Blade material is high speed steel
  • Chain drive the transmitting system
  • Automatic board feeding, automatic blade position regulating, servo motor drive
  • Automatic down stacker for board collecting



Specification:

Model HBSC-3400D
Maximum slitting carboard width 2100mm
Number of slitting knives 16 pieces (8 top blades and 8 bottom blades)
Minimum slitting width for single row slitting blades 120mm
Minimum slitting width for dual row slitting blades 60mm
Min. slitting width for corrugated board 300mm
Minimum cross cutting width 30mm
Slitting thickness for honeycomb board 8-100mm
Slitting thickness for corrugated board 20-40mm
Diameter of slitting thin blade

310mm for 8-60mm thickness cutting

400mm for 60-100mm thickness cutting

Diameter of cross-cut thin blade

480mm for 8-60mm thickness cutting

580mm for 60-100mm thickness cutting

Slitting thin blade thickness 2.3mm(HSS steel)
Cross-cut thin blade thickness 3.0mm(HSS steel)
Main motor power 15kw
Pneumatic pressure 0.6-0.8mpa
Order storage 999





Photos:

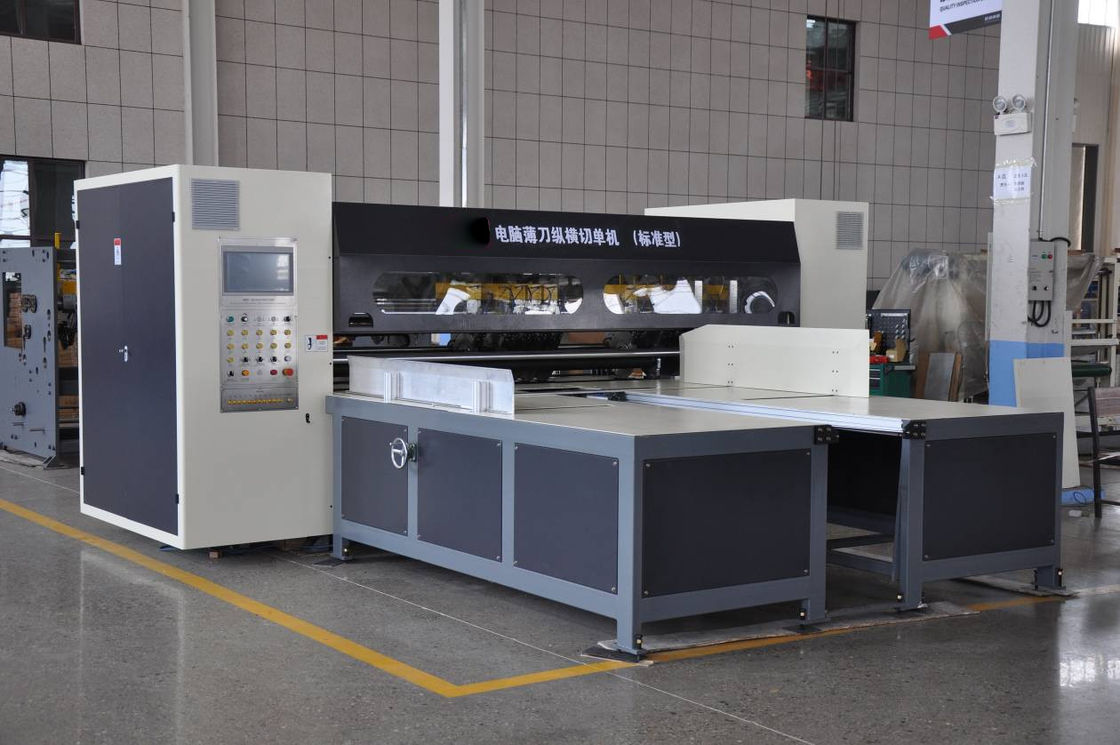

15kw PLC control Paper Honeycomb Machine Board Slitting And Cross Cutting Machine 0

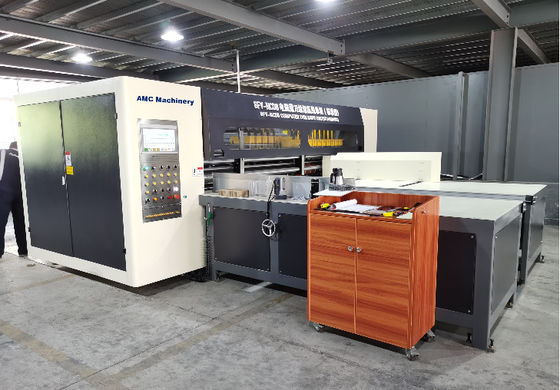

15kw PLC control Paper Honeycomb Machine Board Slitting And Cross Cutting Machine 1
