Product Details:
|
Voltage: | 220V Or 380V Or 415V | Color: | Customized |
---|---|---|---|
Speed: | 10~120pcs/min | Cut Bag Width: | 650mm |
Effective Width Of Die-cutting Stick: | 1300mm | Flanging Device: | Single Fold Double Fold Free Switching |
Highlight: | 380V Honeycomb Paper Bag Making Machine,Honeycomb Paper Bag Making Machine 25KW |

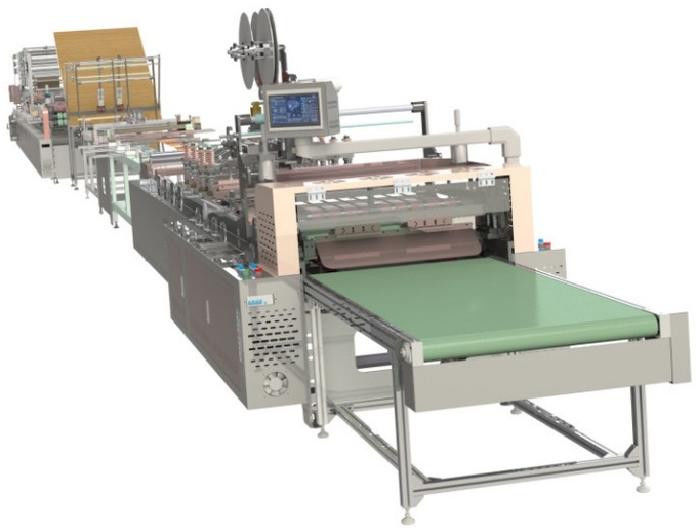

HONEYCOMB PAPER BAG MAKING MACHINE
Model: YNFWD-650
Characteristic:
Specification:
Model | YNFWD-650 | ||
Speed | 10~120pcs/min | ||
Cut bag width | 650mm | ||
Effective width of die-cutting stick | 1300mm | ||
Power | 25KW | ||
Voltage | 380V/50HZ | ||
Dimension parameters | Length | 29000mm | |
Width | 1500mm | ||
Height | 2150mm | ||
Length of Press Tool | 650mm | ||
Weight | 8000kgs |
Configuration List:
Configuration Name | The Fitting Name | Q’ty | Remarks |
Receiving device | Pipeline platform | 1pcs | 120W gear motor |
Bag cutter | Fuselage architecture | 1pcs | 12mm all steel frame |
feeder | 1pcs | 2.3KW high performance servo | |
Spindle servo | 1pcs | 3.0KW High performance servo | |
Press tool assembly | 5pcs |
3 sets of ironing knives 2 sets of cold forming knives |
|
Gluing device | 1pcs | 10KG hot melt glue machine | |
Flanging device | platform | 1pcs | Single fold double fold free switching |
inrun | 1pcs | double cylinder deviation correction | |
Rear feed device | Wear flat belt | 1pcs | 3KW high performance servo |
Cross sealing device | Press tool assembly | 3pcs |
2 sets of transverse seal 1 set of intermediate indentation device |
Drying unit | Light wave drying oven | 1pcs | 4KW air-blown drying device with heating |
Glue spraying device | Belt module | 4pcs | Precise control of spray length and speed |
Cell pulling device | Honeycomb roll | 2pcs | Use dual servo synchronous drawing to precisely control the drawing length |
Loading device |
Pneumatic automatic feeding |
6pcs | Top/bottom/4groups of honeycomb paper |
Products:
