Hydraulic Paper Honeycomb Machine 180mm/min Honeycomb Punching Machine HHBP-1612

I'm Online Chat Now

Hydraulic Paper Honeycomb Machine 180mm/min Honeycomb Punching Machine HHBP-1612

Hydraulic Paper Honeycomb Machine 180mm/min Honeycomb Punching Machine HHBP-1612
Hydraulic Paper Honeycomb Machine 180mm/min Honeycomb Punching Machine HHBP-1612

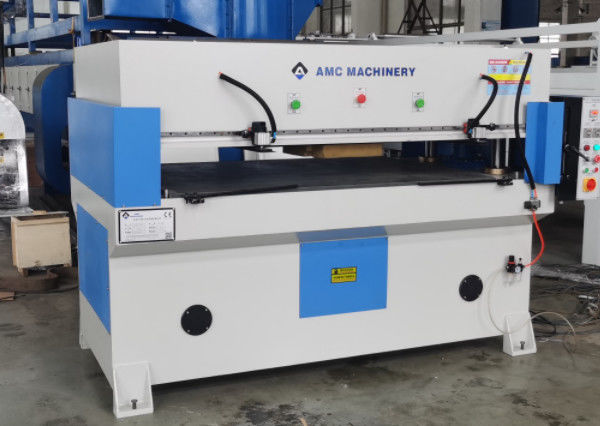

Large Image :  Hydraulic Paper Honeycomb Machine 180mm/min Honeycomb Punching Machine HHBP-1612

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: HHBP-1612
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negociate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 days
Payment Terms: T/T
Supply Ability: 5 sets /mounth

Hydraulic Paper Honeycomb Machine 180mm/min Honeycomb Punching Machine HHBP-1612

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Stroke: 60-260mm Max. Punching Thickness: 60mm
Hydraulic Cylinder Moving Speed: 180mm/min
High Light:

Hydraulic Paper Honeycomb Machine

,

Paper Honeycomb Machine 180mm/min

,

Hydraulic Honeycomb Punching Machine

Hydraulic honeycomb board hole punching machine

Model: HHBP-1612





Characteristics:

  • Machine cover use Q235 steel;
  • Four pillars use 45# steel and be treated with thermal refining;
  • Use separate hydraulic system and electric system;
  • Equipped with double hydraulic cylinder;
  • All switches use Tiande brand products;
  • All hydraulic parts use Fengchang brand products;
  • Use low noise oil pump;
  • Oil cylinder and oil pipes are treated with high temperature forging



Specification:

Model HHBP-1612
Working area 1600x1200mm
Stroke 60-260mm
Max. Punching thickness 60mm
Power 3.0kw
Hydraulic cylinder moving speed 180mm/min
Hydraulic pressure 50T
Machine dimension 2300x1600x1600mm
Machine weight About 3500KG
