Product Details:
|
| Voltage: | 220V Or 380V Or 415V | Color: | Customized |
|---|---|---|---|
| Thickness Of Paper Tube: | 1-5mm | Cutting Length: | 80-900mm |
| Inner Diameter Of Paper Tube: | 15-60mm (as Per Customer's Tube Size) | Cutting Blades: | 1-10pcs |
| High Light: | Two Head Paper Tube Cutting Machine,Paper Tube Cutting Machine 8.2KW |
||

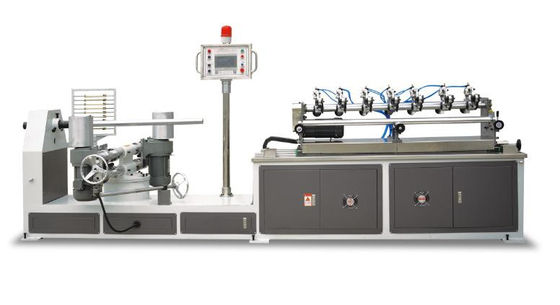

Two head type Paper Tube Production Line
Model: TSJG-60
Characteristics:
Specification:
| TSJG-60 two head type paper tube production line | |
| Inner diameter of paper tube | 15-60mm |
| Thickness of paper tube | 1-5mm |
| Cutting length | 80-900mm |
| Paper layers | 2-9 layers |
| Cutting blade quantity | 1-10 pcs |
| Production speed |
0-30 m/min Base on 360-420gsm inner paper, tube body thickness 2-4mm, 100mm wide belt: Inner diameter 76,maximum speed could be 20m/min Inner diameter 50,maximum speed could be 30m/min |
| Main motor power | 8.2KW |
| Inner Paper Grammage | 200-600gsm |
| Recommended inner paper grammage | 360gsm, 420gsm |
| Surface Paper Grammage | 120-160gsm |
| Cutting accuracy | +/-0.5mm |
| Minimum cutting length | 90mm |
| Tracking motor | 7.4KW |
| Cutting blade driving motor power | 1.5KW |
| Total power |
8.2KW, 380V, 50Hz, 3 phase, 20A 8.2KW, 220V, 50Hz, 3 phase, 40A 8.2KW, 440V, 50Hz, 3 phase, 20A |
| Cutter | Circula13r blade |
| Length-control method | Sensor control |
| Wrapping head quantity | 2 heads |
| Glue Unit | Multilayer gluing type |
| Paper Reel Stand | Cross type |
| Operator | 2-3 persons |
| Head dimension | ￠200mm, height 300mm |
| Two head distance | 800-1100mm |
| Tube wrapping unit dimension | 4300x1500x1800mm |
| Whole line working area | 12000x6000mm |
| Weight | 2100KG |
| Compressor Air Requirement | 0.6MPa/1.2m3 |
Transmitting system:
| Main motor power | 3.7KW x 2 |
| Motor speed | 1400rpm |
| Max. head rotary speed | 72rpm |
| Head output torque | 4000N.M |
| Speed reducer model | WPO155 |
| Transmitting chain model | 12Ax2 |
| Head drive | 2 head drive |
| Cutter driving motor | 1.5KW |
| Bearing | Universal Bearings |
Control system:
| Frequency converter | Luo Bin Kang brand |
| Main electric products | Chint brand |
| Sensor | Hu Gong brand |
| Pneumatic product | Tian Ao brand |
| Synchronous control | Pneumatic control |
| Cutting length control method | Proximity switch |
| PLC | Wecon |
| Touch screen | Wecon |
Belt width choosing:
| Paper tube inner diameter 20-50mm | Belt width 60mm |
| Paper tube inner diameter 30-50mm | Belt width 70mm |
| Paper tube inner diameter 50-60mm | Belt width 100mm |
