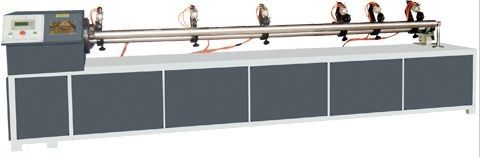

Multi Blade Paper Tube Cutting Machine 220V / 380V / 415V Paper Core Cutting Machine

Multi Blade Paper Tube Cutting Machine 220V / 380V / 415V Paper Core Cutting Machine
Multi Blade Paper Tube Cutting Machine 220V / 380V / 415V Paper Core Cutting Machine

Large Image :  Multi Blade Paper Tube Cutting Machine 220V / 380V / 415V Paper Core Cutting Machine

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: TSJQ-70L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiage
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Multi Blade Paper Tube Cutting Machine 220V / 380V / 415V Paper Core Cutting Machine

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Thickness Of Paper Tube: 3-15mm Cutting Length: 90-2700mm
Inner Diameter Of Paper Tube: 76-152mm (as Per Customer's Tube Size) Cutting Blades: 6 Units
High Light:

Multi Blade Paper Tube Cutting Machine

,

380V Paper Tube Cutting Machine

,

415V Paper Core Cutting Machine

Multi-blade Paper Tube Cutting machine

Model: TSJQ-70L



Characteristics:

Load and upload the material automatically.



Specification:

TSJQ-70L Paper Tube Cutting Machine
Inner diameter of paper tube 76-152mm (as per customer's tube size)
Thickness of paper tube 3-15mm
Cutting length 90-2700mm
Cutting blades 6 pcs
Motor power 3.0KW
Voltage 380V/220V, 60Hz
Pressure 0.6Mpa
Operator 1 person
Size of the cutting blade 2x105x43mm
Demission 3800x700x1150mm
Total weight 860kg



Transmitting system:

Main motor power 3.0KW
Max. motor rotary speed 1400rpm
Tube loading/unloading Manual operating
Transmission mode Triangular Belt Drive
Bearing Universal Bearings



Control system:

PLC Wei Kong Brand
Touch screen MCGS
Main electric products Omron brand
Sensor Omron brand
Pneumatic product Tian Ao brand
Synchronous control Pneumatic control



Photos:
