Four Head Type Paper Tube Production Line Circular blade Paper Tube Cutter 30m/min

Large Image : Four Head Type Paper Tube Production Line Circular blade Paper Tube Cutter 30m/min

Product Details:

Place of Origin:	CHINA
Brand Name:	AMC MACHINERY
Certification:	CE
Model Number:	TSJG-500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate
Packaging Details:	Corrugated box and plastic film
Delivery Time:	60 working days
Payment Terms:	T/T
Supply Ability:	5 sets per month

Contact Now

Four Head Type Paper Tube Production Line Circular blade Paper Tube Cutter 30m/min

Description

Voltage:	220V Or 380V Or 415V	Color:	Customized
Paper Layers:	3-25 Layers	Inner Diameter Of Paper Tube:	50-500mm
Production Speed:	0-30 M/min	Wrapping Head Quantity:	4 Head
Highlight:	Four Head Paper Tube Production Line , Paper Tube Production Line 30m/Min , Circular Blade Paper Tube Cutter

Four head type Paper Tube Production Line

Model: TSJG-500

Characteristics:

Used for making paper tube with inner diameter of 50-500mm and thickness 2-15mm;
According to different paper tube, production speed could be 0-30m/min;
Paper tube cutting length is controlled by sensor, easy operation;
Main motor is 30KW, made in Shanghai. RPM is adjustable;
Cross type paper stand, pneumatic glue supply system;
Bottom paper with both gluing tank and lubricating tank;
The cutting table motor is Gear type speed reducer motor, brand is Oute, made in Shanghai;
Pneumatic control cutting table up/down;
Cutter lifting/down speed is controlled by air valve;
Cutting table moving on linear shaft, moving stably;
Frequency converter control the main motor;
PLC control and control through touch screen;
PLC brand is Delta, other electric use Chint brand products, pneumatic parts use Tianao brand product;

Specification:

TSJG-500 four head type paper tube production line
Inner diameter of paper tube	50-500mm
Thickness of paper tube	2-15mm
Paper layers	3-25 layers
Inner paper grammage	420-600gsm
Surface paper grammage	420-600gsm
Production speed	0-30 m/min Use 360-510gsm paper, inner diameter 76, thickness 3-8 mm, 4 to 13 layers of paper, speed can reach to 30 m/min
Main motor power	30KW
Cutting blade driving motor power	0.75KW
Total power	30.75KW, 380V, 50Hz, 3 phase, 81A 33.75KW, 220V, 50Hz, 3 phase, 140A 33.75KW, 440V, 50Hz, 3 phase, 70A
Cutter	Circular blade
Cutting accuracy	±3mm
Minimum cutting length	800mm
Length-control method	Sensor control
Wrapping head quantity	4 head
Glue Unit	Multilayer gluing type
Paper Reel Stand	Cross type
Operator	2-3 persons
Head dimension	Ø294mm, height 360/720mm
Two heads distance	1150-1800mm
Dimension	23000x10000x2100mm
Weight	5800KG
Compressor Air Requirement	0.8MPa/1.2m3 (Customer Provide)

Transmitting system:

Main motor power	30KW
Motor speed	1400rpm
Max. head rotary speed	62rpm
Head output torque	8500N.M
Speed reducer model	WPO155
Transmitting chain model	12A x 2
Head drive	4 head drive
Cutter driving motor	0.75KW
Bearing	Universal Bearings

Control system:

Frequency converter	An Rui Ji brand
Main electric products	Chint brand
Sensor	Hu Gong brand
Pneumatic product	Tian Ao brand
Synchronous control	Pneumatic control
Cutting length control method	Proximity switch
PLC	Delta
Touch screen	Kun Lun Tong Tai brand

Regular belt width choosing:

Paper tube inner diameter 45-65mm	Belt width 80mm
Paper tube inner diameter 66-100mm	Belt width 100mm
Paper tube inner diameter 101-120mm	Belt width 110mm
Paper tube inner diameter 121-300mm	Belt width 120mm
Paper tube inner diameter 301-500mm	Belt width 150mm

Configuration:

Paper tube collect stand	Automatic
Belt regulation	Manual control
Paper stand angle	Automatic control
Glue supply	Pneumatic supply
Bottom paper lubrication	Automatic
Tension control	Manual control
Paper stand type	Cross type
Head wrapping belt	Canvas belt

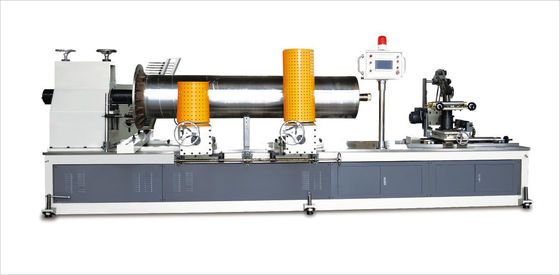

Photos of paper tube production line:
