Chemical Fiber Paper Tube Cutting Machine 12.6KW Paper Tube Curling Machine

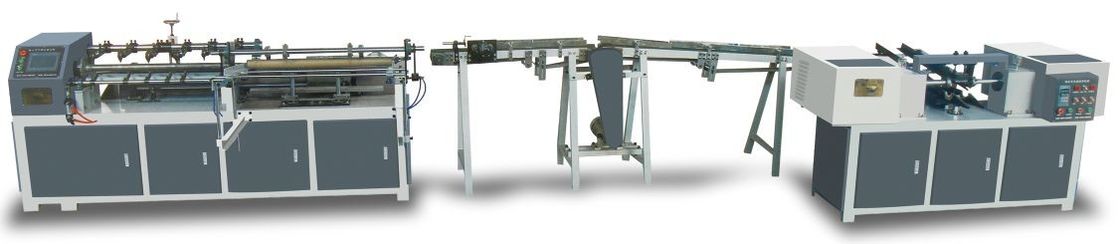

Large Image : Chemical Fiber Paper Tube Cutting Machine 12.6KW Paper Tube Curling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	AMC MACHINERY
Certification:	CE
Model Number:	DTY

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiage
Packaging Details:	Corrugated box and plastic film
Delivery Time:	60 working days
Payment Terms:	T/T
Supply Ability:	5 sets per month

Contact Now

Chemical Fiber Paper Tube Cutting Machine 12.6KW Paper Tube Curling Machine

Description

Voltage:	220V Or 380V Or 415V	Color:	Customized
Thickness Of Paper Tube:	2-8mm	Cutting Length:	120-1600mm
Inner Diameter Of Paper Tube:	50-76mm Or 76-96mm Or 100-120mm (as Per Customer's Tube Size)	Cutting Blades:	8 Units
Highlight:	Chemical Paper Tube Cutting Machine , Fiber Paper Tube Cutting Machine , 12.6KW Paper Tube Curling Machine

Chemical fiber paper tube cutting and curling machine

Model: DTY

Characteristics:

Load and upload the material automatically.
Do curling automatically.

Specification:

DTY Chemical fiber paper tube cutting and curling machine
Inner diameter of paper tube	50-76mm or 76-96mm or 100-120mm
Thickness of paper tube	2-8mm
Cutting length	120-1600mm
Cutting blades	8 units
Total power	12.6KW
Voltage	380V/220V, 60Hz
Pressure	0.6Mpa
Operator	1 persons
Demission	4000x2000x1500mm 1900x1000x1300mm
Totally weight	2300kg

Transmitting system:

Main motor power	12.2KW
Max. head rotary speed	1400rpm
Transmitting system	Chain feeder drive
Head drive	2 head drive
Bearing	Universal Bearings

Control system:

PLC	XinJie Brand
Touch screen	MCGS
Frequency converter	An Rui Ji brand
Main electric products	Chint brand
Sensor	Hu Gong brand
Pneumatic product	Tian Ao brand
Synchronous control	Pneumatic control

Tag:

Paper Tube Curling Machine,

Automatic Cover Presser,

Paper Tube Production Line
