2.6KW Paper Tube Cutting Machine 0.6Mpa Pressure Cardboard Tube Cutter TSJQ-70

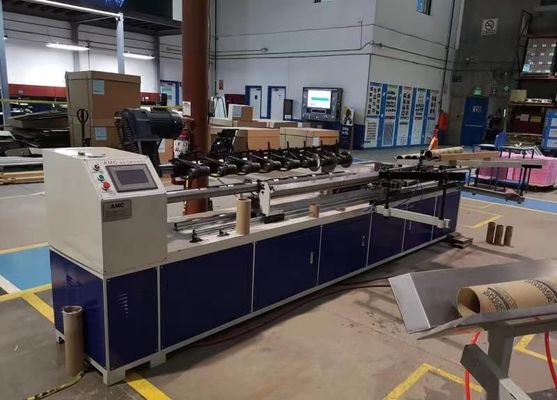

Large Image : 2.6KW Paper Tube Cutting Machine 0.6Mpa Pressure Cardboard Tube Cutter TSJQ-70

Product Details:

Place of Origin:	CHINA
Brand Name:	AMC MACHINERY
Certification:	CE
Model Number:	TSJQ-70

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate
Packaging Details:	Plywood pallet
Delivery Time:	60 working days
Payment Terms:	T/T
Supply Ability:	5 sets per month

Contact Now

2.6KW Paper Tube Cutting Machine 0.6Mpa Pressure Cardboard Tube Cutter TSJQ-70

Description

Voltage:	220V Or 380V Or 415V	Color:	Customized
Thickness Of Paper Tube:	1-5mm	Cutting Length:	180-1350mm
Inner Diameter Of Paper Tube:	30-90mm (as Per Customer's Tube Size)	Cutting Blades:	8 Units
Highlight:	2.6KW Paper Tube Cutting Machine , Paper Tube Cutting Machine 0.6Mpa , 2.6KW Cardboard Tube Cutter

Paper Tube Cutting machine

Model: TSJQ-70

Characteristics:

Load and upload the material automatically.

Specification:

TSJQ-70 Paper Tube Cutting Machine
Inner diameter of paper tube	30-90mm (as per customer's tube size)
Thickness of paper tube	1-5mm
Cutting length	180-1350mm
Cutting blades	8 units
Motor power	2.6KW
Voltage	380V/220V, 60Hz
Pressure	0.6Mpa
Operator	1 persons
Item of the cutting blade	2x105x43mm
Demission	3900x1000x1300mm
Totally weight	1600kg

Transmitting system:

Main motor power	2.2KW
Max. head rotary speed	1400rpm
Transmitting system	Chain feeder drive
Head drive	2 head drive
Bearing	Universal Bearings

Control system:

PLC	XinJie Brand
Touch screen	MCGS
Frequency converter	An Rui Ji brand
Main electric products	Chint brand
Sensor	Hu Gong brand
Pneumatic product	Tian Ao brand
Synchronous control	Pneumatic control
