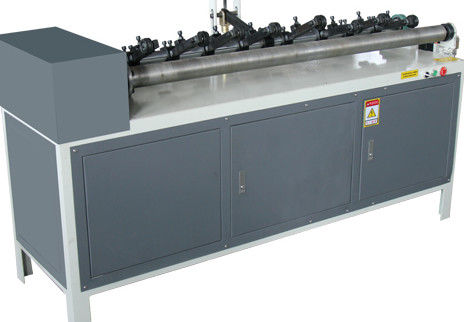

TSJQ-70M Automatic Paper Tube Cutting Machine 1.5KW 30 - 100mm Inner diameter

I'm Online Chat Now

TSJQ-70M Automatic Paper Tube Cutting Machine 1.5KW 30 - 100mm Inner diameter

TSJQ-70M Automatic Paper Tube Cutting Machine 1.5KW 30 - 100mm Inner diameter
TSJQ-70M Automatic Paper Tube Cutting Machine 1.5KW 30 - 100mm Inner diameter

Large Image :  TSJQ-70M Automatic Paper Tube Cutting Machine 1.5KW 30 - 100mm Inner diameter

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: TSJQ-70M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiage
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

TSJQ-70M Automatic Paper Tube Cutting Machine 1.5KW 30 - 100mm Inner diameter

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Thickness Of Paper Tube: 1-5mm Cutting Length: 70-1500mm
Inner Diameter Of Paper Tube: 30-100mm (as Per Customer's Tube Size) Cutting Blades: 8 Units
High Light:

Automatic Paper Tube Cutting Machine

,

Paper Tube Cutting Machine 1.5KW

,

100mm Automatic Paper Tube Cutter

Multi-blade Paper Tube Cutting machine

Model: TSJQ-70M





Characteristics:

Load and upload the material automatically.



Specification:

TSJQ-70M Paper Tube Cutting Machine
Inner diameter of paper tube 30-100mm (as per customer's tube size)
Thickness of paper tube 1-5mm
Cutting length 70-1500mm
Cutting blades 8 pcs
Motor power 1.5KW
Voltage 380V/220V, 60Hz
Pressure 0.6Mpa
Operator 1 person
Size of the cutting blade 2x105x43mm
Demission 2000x800x1020mm
Total weight 270kg



Transmitting system:

Main motor power 1.5KW
Tube loading/unloading Manual operating
