Continuous Paper Honeycomb Machine Production Line 65KW HZX-2000PC800

Description
Application: Honeycomb Production Color: Customized
Thickness Of Honeycomb Board: 6-100mm Core Cutting Precision: +/-0.15mm
Heating Method: Customized Output (6 Paper Rolls): Maximum 1100KG/hour
Core Cutting Speed: 0-800cuts/min Voltage: 220V Or 380V Or 415V
High Light:

Continuous Paper Honeycomb Machine

,

Paper Honeycomb Machine 65KW

,

Continuous Honeycomb Paper Production Line



Continuous Paper Honeycomb Production Line

Model: HZX-2000PC800



Characteristics:

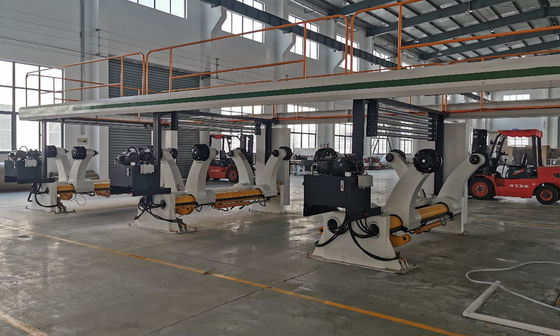

  • It is convenient for workers to put up the paper roll through Hydraulic Paper Stand;
  • Glue system can glue the core paper;
  • Gluing roller lift pneumatically, makes the glue homogeneous;
  • Honeycomb shorten after stretch: For cell 6, 80%; for cell 8 and cell 10, 78%; for cell 12 and bigger, 75%;

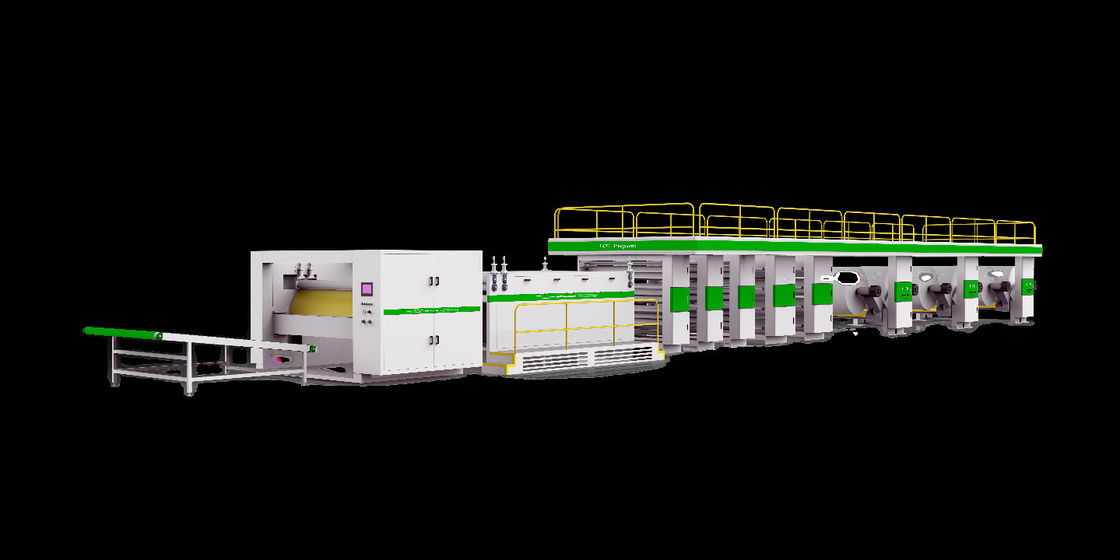

Working speed: 0-800 cut/min, the line requires following machines:

No. Sections Name

Quantity

(set)

1 Hydraulic Paper Reel Stand 3
2.1 Three layers gluing unit A1 & A2 2
2.2 Double layer gluing unit B1 & B2 2
3 Belt compressing unit 1
4 Chamber drying unit 1
5 Top layer gluing unit 1
6 Honeycomb core cutter 1
7 Honeycomb core stacker 1



Specification:

Model HZX-2000PC800
Thickness of honeycomb board 6-100mm
Paper grammage 100-180gms
Core cutting speed 0-800cuts/min
Output (6 paper rolls)

Maximum 1100KG/hour

calculated as per following data:

Thickness: 20mm

Paper reel width: 2000mm

Paper grammage: 130gsm

Core cutting precision +/-0.15mm
Total power 65KW
Power requirement 3 phase, 5 lines, 50Hz
Heating method Electric heating
Air compressor requirement ≥7.5KW, 0.8m3, air storage tank ≥0.8m3
Dimension (LxWxH) 33000x5000x2800mm

Note: Working speed depend on machine configuration, paper quality, glue quality, operator’s experience, etc….



Details of each section

  • Hydraulic Paper Reel Stand
    Mother paper roll width: 2000mm
    Mother paper roll diameter: 1500mm
    Max. mother paper roll weight: 2500KG
    Core diameter: 76mm (3”)
    Tension control: Controlled by pneumatic brake
    Arm up/down: Driven by hydrocylinder

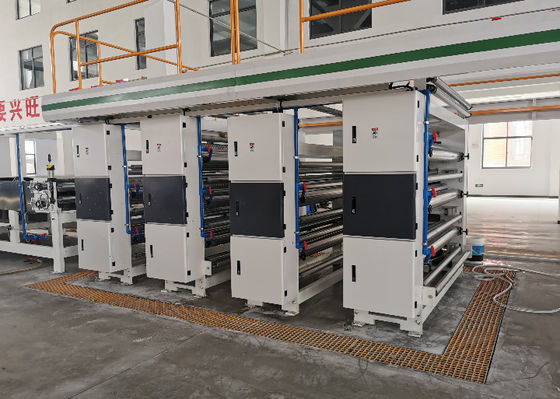

  • Gluing unit A1, B1, A2, B2
    Gluing method: roller gluing
    Glue consumption control: Control with screw pump
    Glue supply method: Glue supplied by pneumatic pump
    Two sets of three layer gluing unit (A1 & A2) + two sets of double layer gluing unit (B1 & B2) can allow customer making FOUR types of cell sizes without change gluing rollers
  • Belt compressing unit
    Top and bottom use nitrile rubber belt and work with 12 pcs pressing rolls
    Entrance installed carry-over pinch roll, lift/down driven by air cylinder
    Unit length: 3500mm
  • Chamber drying unit
    Double layer thermal insulation
    Heating method: IR heating from both top and bottom
    Temperature adjusting range: 0-120℃
    Chamber length: 4000mm
    Heating purpose 1: remove some moisture
    Heating purpose 2: heating the glue to make paper glued quickly
    Power: 28KW
  • Top layer gluing unit
    Two sets gluing rolls installed on this unit, easy for changing. When machine stops, paper will be separated from the gluing roll automatically
    Manual adjust glue volume
    Surface of gluing roller and glue doctor roller coated hard chromium and ground with high accuracy
    Each gluing roll’s lateral position can be adjusted as per different cell size
    Independent frequency converter is used to adjust running speed
    Glue tank is made with stainless steel
  • Horizontal core cutter
    Top pressing wheel are pneumatic control;
    Max. cutting width: 2000mm
    Two types of pressing rolls are installed, can do choosing through air cylinder
    Thickness of core is digital display;
    Cutting precision is +/-0.1mm;
    Working speed: 0-800 cut/min
  • Honeycomb core stacker
    Adopt nitrile rubber belt to conveying finished paper honeycomb core
    PLC control, frequency converter adjut conveying speed
    Output point height: 1200mm
