Product Details:
|
| Voltage: | 220V Or 380V Or 415V | Color: | Customized |
|---|---|---|---|
| Maximum Slitting Cardboard Width: | 2000mm | Min. Slitting Width: | Honeycomb Board: 100mm; Corrugated Board: 300mm |
| Min. Cross Cutting Width: | 30mm | Slitting Thickness: | Honeycomb Board: 10-60mm; Corrugated Board: 20-40mm |
| High Light: | Automatic Honeycomb Paper Board Slittng Machine,Auto Honeycomb Paper Board Slittng Machine |
||
Honeycomb board slitting and cross cutting machine
Model: HBSC-2300
(Servo drive, Manual slitting regulating, Automatic cross cutting regulating)
Main performance:
Specification:
| Model | HBSC-2300 |
| Maximum slitting carboard width | 2000mm |
|
Number of slitting knives (Can be increased or decreased according to user requirements) |
6 pieces |
| Min. slitting width for honeycomb board | 100mm |
| Min. slitting width for corrugated board | 300mm |
| Minimum cross cutting width | 30mm |
| Slitting thickness for honeycomb board | 10-60mm |
| Slitting thickness for corrugated board | 20-40mm |
| Diameter of slitting thin blade | 310mm |
| Diameter of cross-cut thin blade | 480mm |
| Slitting thin blade thickness | 2.3mm(HSS steel) |
| Cross-cut thin blade thickness | 3.0mm(HSS steel) |
| Main motor power | 15kw |
| Pneumatic pressure | 0.6-0.8mpa |
| Order storage | 999 |

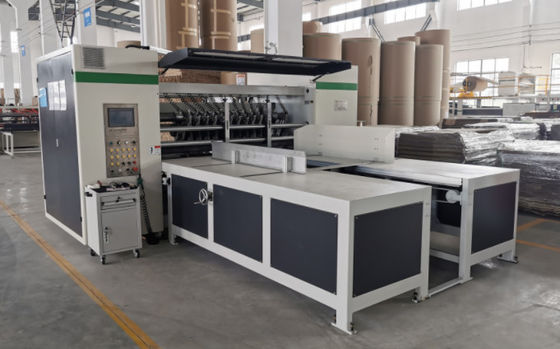

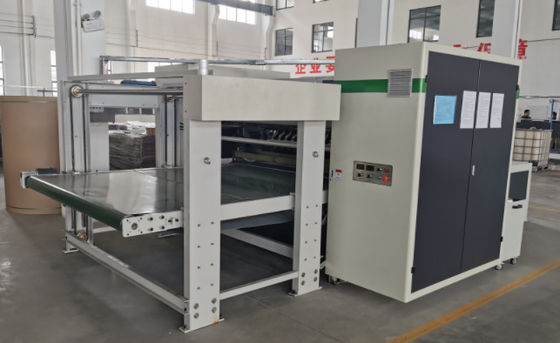

Photos:
