Multifunctional Automatic Carton / Box Making Machine

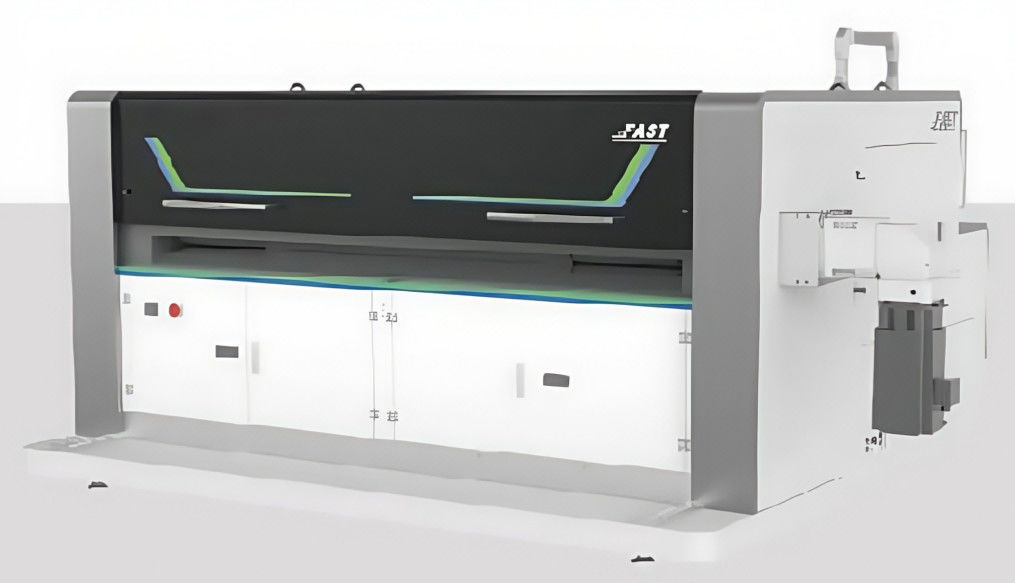

Large Image : Multifunctional Automatic Carton / Box Making Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	AMC MACHINERY
Certification:	CE
Model Number:	AB2500 FAST

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate
Packaging Details:	Corrugated box and plastic film
Delivery Time:	40 working days
Payment Terms:	T/T
Supply Ability:	5 sets per month

Contact Now

Multifunctional Automatic Carton / Box Making Machine

Description

Voltage:	220V Or 380V Or 415V	Color:	Customized
Corrugated Board Type:	Sheets (single, Double, Triple Wall)	Corrugated Board Thickness:	1.5-8mm
Max. Board Size:	2500mm (W)xUnlimited Length	Min. Board Size:	L650*W200mm
Speed:	3000pcs/hr

Automatic Box Maker
The Perfect Solution for Small-Batch, Multi-Style Carton Production

Model: AB2500 FAST

A revolutionary on-demand one-pass box making machine with a patented overall design. Combines the speed of a slotter with the functionality of a digital cutter.

Features:

✔ Enable slotting, creasing, scoring, slitting, trimming, and hole punching in one pass.

✔ Effortlessly handles diagonal cuts and U-shaped slots.

✔ Operates at one meter per second without interruption, perfectly matching the output of single-pass digital printers.

Specification:

Model	AB2500 FAST
Speed	3000pcs/hr
Switchover time	10s
Board type	Corrugated sheet
Board thickness	1.5-8mm
Max. Board size	W2500mm
Max. Board size	Unlimited length
Min. Board size	L650*W200mm
Max. Box size	W1000H1500mmUnlimited length
Min. Box size	L240W240H65mm
Total power	380V
Total power	80KW
Wight	7000kgs
Dimension (LxWxH)	L2700mm
	W3759mm
	H2200mm

Functions:
Multifunctional Automatic Carton / Box Making Machine 0

Model	AB2500 FAST
Pre-defined Box Types	√
Automatic Feeding	√
Scoring	√
Slotting	√
Creasing	√
Slitting	√
Trimming	√
Hole Puncher	√
Code Scanning	Optional
Automatic stacking	Optional
Printing	Optional
Box folding	×
labeling	×
