Single Pass Multifunctional Automatic Corrugated Box Making Machine Low Consumption

I'm Online Chat Now

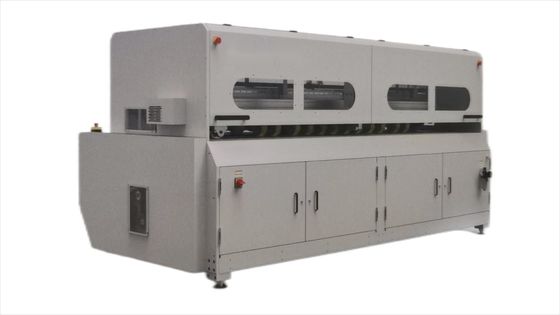

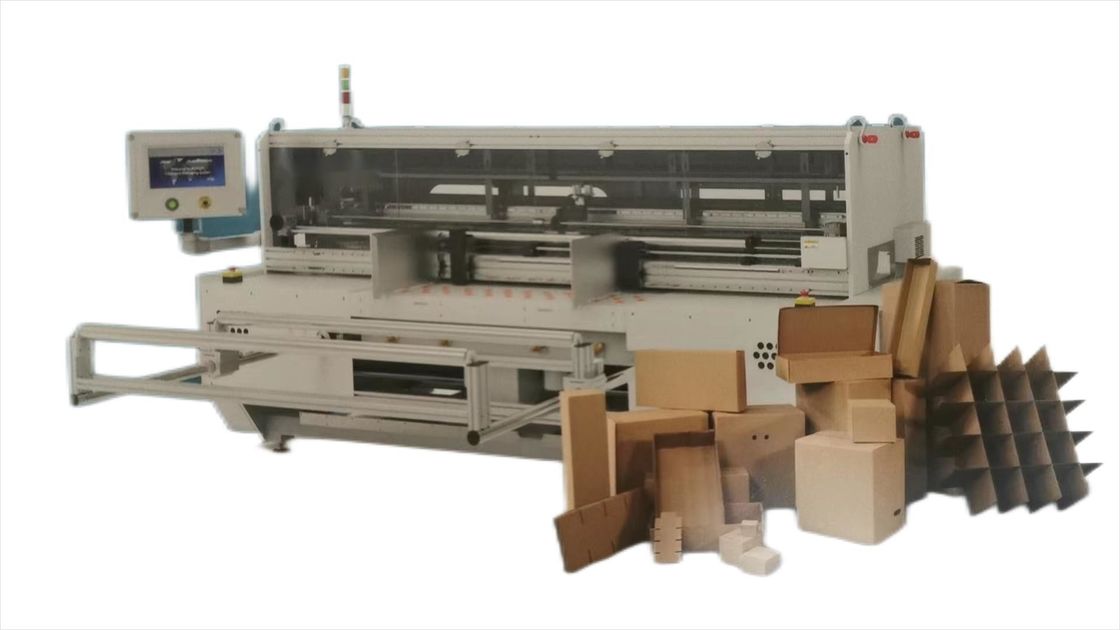

Single Pass Multifunctional Automatic Corrugated Box Making Machine Low Consumption

Single Pass Multifunctional Automatic Corrugated Box Making Machine Low Consumption
Single Pass Multifunctional Automatic Corrugated Box Making Machine Low Consumption Single Pass Multifunctional Automatic Corrugated Box Making Machine Low Consumption

Large Image :  Single Pass Multifunctional Automatic Corrugated Box Making Machine Low Consumption

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: BM2508-Plus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Single Pass Multifunctional Automatic Corrugated Box Making Machine Low Consumption

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Corrugated Board Type: Single Wall & Double Wall Corrugated Board Thickness: 2-10mm
Board Density Range: ≤1200g/m2 Max. Board Size: 2500mm (W)x Unlimited Length
Min. Board Size: 200mm (W)x 650mm(L) Production Speed: Appr. 500-800 Pcs/h
High Light:

Multifunctional Automatic Corrugated Box Making Machine

,

Single Pass Automatic Corrugated Box Making Machine

,

Multifunctional Automatic Box Making Machine

Single Pass Fully Automatic Box Making Machine
Model: BM2508-Plus





Characteristics:

  • Specialized in Low to Medium Volume Boxes Production
  • One Operator is enough
  • Low consumption
  • Multi-functional
  • Easy operation
  • No need die-cutting mold
  • 100+ shot run orders in one day
  • Board feeding, slotting, scoring, creasing, trimming, handle die-cutting, gluing, all in one compact machine


Principle of carton processing:

Single Pass Multifunctional Automatic Corrugated Box Making Machine Low Consumption 0



Main Function:
Single Pass Multifunctional Automatic Corrugated Box Making Machine Low Consumption 1

Technical Specifications:

Model BM2508-Plus
Corrugated board type Single Wall & Double Wall Creasing Wheel 4
Corrugated board thickness 2-10mm Horizontal Cutting Knife 1
Board density range ≤1200g/m2 Power Supply 380V土10%Max8kW, 50/60 Hz
Max. Board size 2500mm (W)x Unlimited Length Air Pressure 0.6-0.7MPa,75L/Min
Min. Board size 200mm (W)x 650mm(L) Dimension 3610(W)x2050(L)x 2090mm(H)
Production speed Appr.500-800 pcs/h Gross Weight 3300Kg
Slotting knife 2 x 500mm Handhole On Box Sides 120x120mm
Vertical cutting knife 4 Box Styles 80+
