Heavy Duty Automatic Box Maker 220V 380V 415V BM3000 HD Customized Color

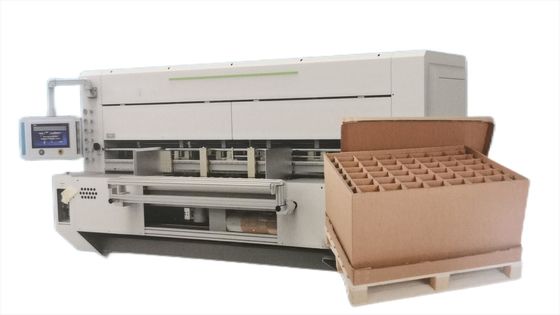

Large Image : Heavy Duty Automatic Box Maker 220V 380V 415V BM3000 HD Customized Color

Product Details:

Place of Origin:	CHINA
Brand Name:	AMC MACHINERY
Certification:	CE
Model Number:	BM3000 HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate
Packaging Details:	Corrugated box and plastic film
Delivery Time:	40 working days
Payment Terms:	T/T
Supply Ability:	5 sets per month

Contact Now

Heavy Duty Automatic Box Maker 220V 380V 415V BM3000 HD Customized Color

Description

Voltage:	220V Or 380V Or 415V	Color:	Customized
Corrugated Board Type:	Sheets (single, Double, Triple Wall)	Corrugated Board Thickness:	2-16mm
Max. Board Size:	3000mm (W)xUnlimited Length	Min. Board Size:	300mm (W)x 650mm(L)
Speed:	Appr. 10-16 Pcs/min
Highlight:	Heavy Duty Automatic Box Maker , Automatic Box Maker 220V

Heavy Duty Box Maker
Model: BM3000 HD

Characteristics:

Specialized in Heavy duty box production
Fully automatic slotting, slitting, creasing, all in one compact machine
Sheets from E flute to AAA flute

Technical Specification:

Model	BM3000 HD
Corrugated board type	Sheets (single, double, triple wall)	Horizontal Cutting Knife	1
Corrugated board thickness	2-16mm	Power Supply	380V土10%, Max.10kw, 50/60 Hz
Board density range	≤2400g/m²	Air Pressure	0.6-0.7MPa
Max. Board size	3000mm (W)xUnlimited Length	Dimension	3820(W)x2060(L)x 1970mm(H)
Min. Board size	300mm (W)x 650mm(L)	Gross Weight	Appr. 4500Kg
Production speed	Appr. 10-16 pcs/min	Handhole On Box Sides	150x300mm
Slotting knife	2pcs x 500mm (length)	Glue Flap Crash	√
Vertical cutting knife	4	Air consumption	90L/min
Scoring/Creasing Wheel	4+4	Box Styles	80+

Tag:

Automatic Corrugated Box Making Machine,

Auto Box Maker,

Automatic Box Making Machine
