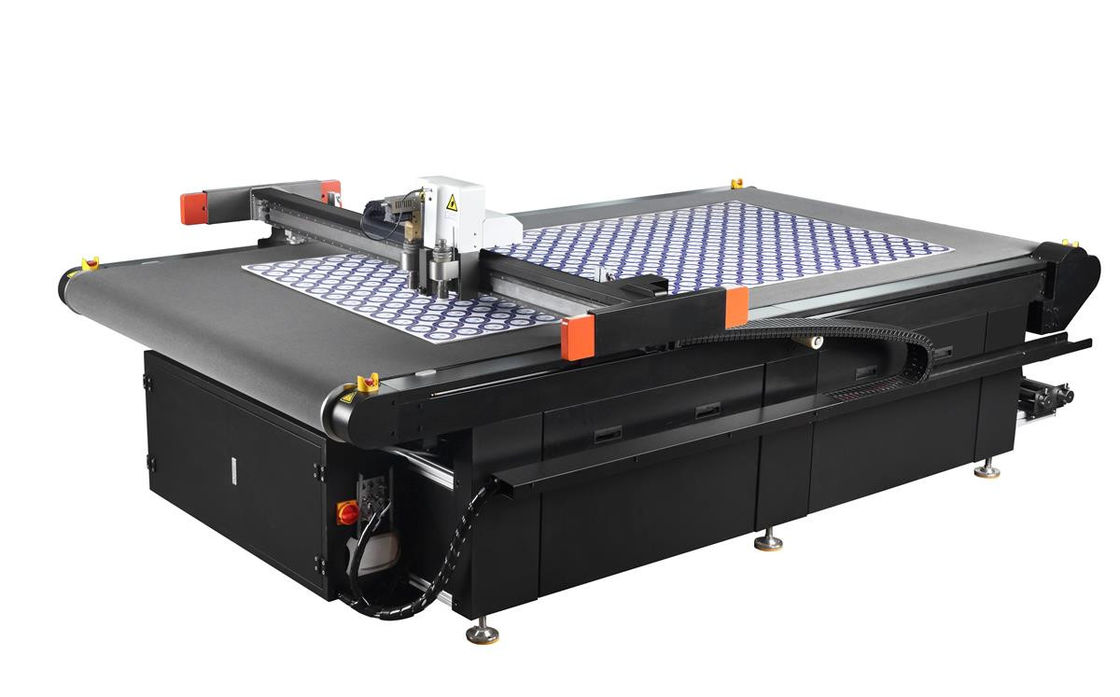

High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516

High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516
High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516

Large Image :  High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: MEC85-2516
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Max.cutting Area: 2500x1600mm Cutting Thickness: Oscillating Knife ≤50mm; Milling Cutter ≤22mm (according To Different Cutting Materials)
Capacity: 2GB Repeated accuracy: ≤0.1mm
High Light:

Digital Sample Cutting Machine

,

Flatbed Sample Cutting Machine

Sample Cutting machine

Model: MEC85-2516





Brief introduction:

MEC85-2516 series high speed flatbed digital cutter specially equips the router system and with the vibrating knife, creasing wheel, drag knife, v cut knife and pen, it can cut many kind of materials, such as corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet and also the ads and display industry’s materials, hard plastic, acrylic and PVC and so on. MEC85R is more flexible and broaden the cutting application. It can be used to cutting, sampling, and small production for the packing, printing, ads and display industries.



Main features:

  • Three independent module design, broaden the application
  • Exchangeable tools, better expansion
  • High speed imported spindle, smoother in the cutting edge
  • New vacuum area design, stronger suction
  • Max cutting thickness up to 50mm



Specification:

Max.cutting area 2500x1600mm
Cutting thickness

Oscillating knife ≤50mm

(according to different cutting materials)

Milling cutter ≤22mm

(according to different cutting materials)

Repeated accuracy ≤0.1mm
Capacity 2GB
Transmission system Imported (Digital servo motor, linear guide, belts)
Instruction system DXF, HP-GL compatible format
Voltage 220V/380V ± 10%
Machine dimension 3250x2035x1290mm
Packing box dimension 3410x2210x1800mm
Total weight with box 1200KG



Cutting Samples:

High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 0High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 1High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 2High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 3High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 4High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 5High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 6High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 7High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 8High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 9High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 10High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 11High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 12High Speed Flatbed Digital Sample Cutting Machine 2500x1600mm MEC85-2516 13
