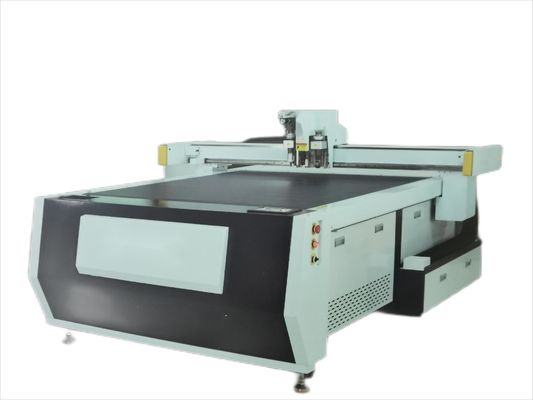

Digital Automatic Box Maker 1500mm/s Customized Color TSD-HC1713

I'm Online Chat Now

Digital Automatic Box Maker 1500mm/s Customized Color TSD-HC1713

Digital Automatic Box Maker 1500mm/s Customized Color TSD-HC1713
Digital Automatic Box Maker 1500mm/s Customized Color TSD-HC1713

Large Image :  Digital Automatic Box Maker 1500mm/s Customized Color TSD-HC1713

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: TSD-HC1713
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Digital Automatic Box Maker 1500mm/s Customized Color TSD-HC1713

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Cutting Range: 1700*1300mm Max. Cutting Speed: 1500mm/s
Max. Cutting Thickness: 50mm (customizable Heightened Models) Cutting Precision: ±0.05mm
Graphic Format: DXF, DWG, A, PLT
High Light:

Automatic Box Maker Customized

,

Automatic Box Maker 1500mm/s

Digital Cutting Machine (Optional - CCD Visual Positioning System)
Model: TSD-HC1713





Equipment function:

  • Cutting function: it can cut cardboard, corrugated, gray board, film, honeycomb board, pearl cotton, EVA and other materials.
  • Grooving function: able to cut V-grooves at various angles on gray paperboard, cardboard and other materials.
  • Indentation function: it can indent perfect folding line on cardboard, corrugated board and other materials.
  • Drawing function: equipped with a drawing pen, able to draw various high-precision patterns.



Characteristics:

  • Full rack and pinion transmission system, high precision and speed
  • Double knife seat design, good effect, strong expansion ability.
  • High-strength, frame-type body, stable and not deformed.
  • Touch screen visually sets various cutting parameters to facilitate the control of machine operation.
  • Ethernet Transmission Port: Stable data transmission, strong expandability; can realize remote upgrade and maintenance, control the machine and call files in LAN.
  • Safety Protection: Physical anti-collision and built in infrared sensor double safety anti-collision device design.


Technical Specifications:

Model TSD-HC1713
Cutting Range 1700*1300mm
Max. Cutting speed 1500mm/s
Max. Cutting thickness 50mm (customizable heightened models)
Cutting precision

±0.05mm

Tool configuration Vibrating knife, press wheel, pen, drag knife, V-cutting knife
Option functions CCD visual positioning system
Graphic format DXF, DWG, A, PLT
Equipment power supply 380V/220V, 50HZ/60HZ
Customs code 8441100000
Machine size 2600*2200mm
Machine weight 900kgs
