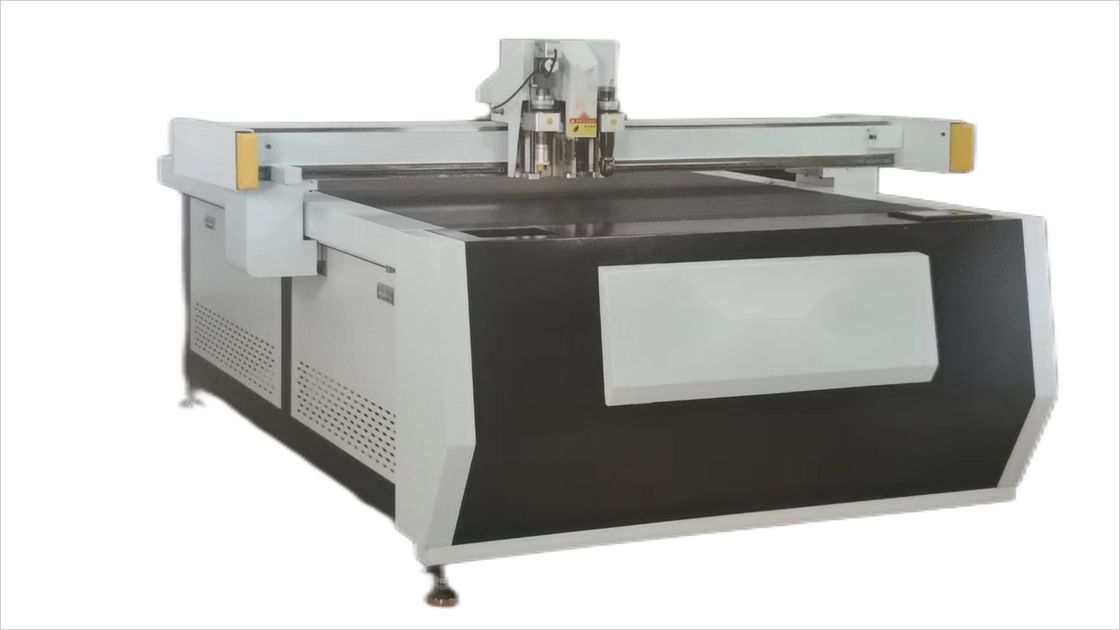

High Precision Digital Automatic Box Maker Optional CCD Visual Positioning System

I'm Online Chat Now

High Precision Digital Automatic Box Maker Optional CCD Visual Positioning System

High Precision Digital Automatic Box Maker Optional CCD Visual Positioning System
High Precision Digital Automatic Box Maker Optional CCD Visual Positioning System

Large Image :  High Precision Digital Automatic Box Maker Optional CCD Visual Positioning System

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: TSD-HC1310
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

High Precision Digital Automatic Box Maker Optional CCD Visual Positioning System

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Cutting Range: 1300*1000mm Max. Cutting Speed: 1500mm/s
Max. Cutting Thickness: 50mm (customizable Heightened Models) Cutting Precision: ±0.05mm
Graphic Format: DXF, DWG, A, PLT
High Light:

Digital Automatic Box Maker

,

High Precision Automatic Box Maker

Digital Cutting Machine (Optional - CCD Visual Positioning System)
Model: TSD-HC1310





Equipment function:

  • Cutting function: it can cut cardboard, corrugated, gray board, film, honeycomb board, pearl cotton, EVA and other materials.
  • Grooving function: able to cut V-grooves at various angles on gray paperboard, cardboard and other materials.
  • Indentation function: it can indent perfect folding line on cardboard, corrugated board and other materials.
  • Drawing function: equipped with a drawing pen, able to draw various high-precision patterns.



Characteristics:

  • Full rack and pinion transmission system, high precision and speed
  • Double knife seat design, good effect, strong expansion ability.
  • High-strength, frame-type body, stable and not deformed.
  • Touch screen visually sets various cutting parameters to facilitate the control of machine operation.
  • Aeronautical honeycomb aluminum alloy adsorption platform with table compensation, good proofing effect.
  • High Frequency Vibrating Knife: High frequency vibrating cutter head high speed, high quality cutting cardboard, corrugated, gray board, film, honeycomb board, pearl cotton, EVA and many other materials.

Technical Specifications:

Model TSD-HC1310
Cutting Range 1300*1000mm
Max. Cutting speed 1500mm/s
Max. Cutting thickness 50mm (customizable heightened models)
Cutting precision

±0.05mm

Tool configuration Vibrating knife, press wheel, pen, drag knife, V-cutting knife
Option functions CCD visual positioning system
Graphic format DXF, DWG, A, PLT
Equipment power supply 380V/220V,50HZ/60HZ
Customs code 8441100000
Machine size 2200*1900mm
Machine weight 800kgs
