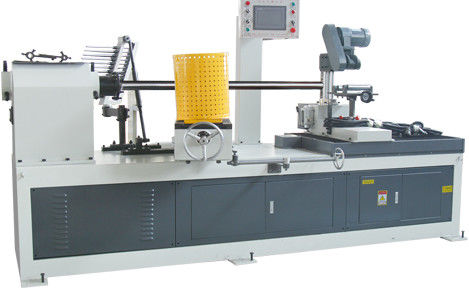

Four Head Type 15KW Paper Tube Cutting Machine 30 - 100mm Inner diameter TSJG-100

I'm Online Chat Now

Four Head Type 15KW Paper Tube Cutting Machine 30 - 100mm Inner diameter TSJG-100

Four Head Type 15KW Paper Tube Cutting Machine 30 - 100mm Inner diameter TSJG-100
Four Head Type 15KW Paper Tube Cutting Machine 30 - 100mm Inner diameter TSJG-100

Large Image :  Four Head Type 15KW Paper Tube Cutting Machine 30 - 100mm Inner diameter TSJG-100

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: TSJG-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Plywood pallet
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Four Head Type 15KW Paper Tube Cutting Machine 30 - 100mm Inner diameter TSJG-100

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Thickness Of Paper Tube: 2-15mm Inner Diameter Of Paper Tube: 30-100mm
Paper Layers: 3-25 Layers Wrapping Head Quantity: 4 Heads
High Light:

Four Head Paper Tube Cutting Machine

,

15KW Paper Tube Cutting Machine

Four Head Type Paper Tube Production Line

Model: TSJG-100





Characteristics:

  • Used for making paper tube with inner diameter of 30-100mm and thickness 1-8mm;
  • According to different paper tube, production speed could be 0-22m/min;
  • Independent driving two head same space and suitable for producing small diameter paper tube.
  • Paper tube cutting length is controlled by sensor, easy operation;
  • Main motor is 15KW;
  • Cross type paper stand, pneumatic glue supply system;
  • Bottom paper with both gluing tank and lubricating tank;
  • The cutting table motor is Gear type speed reducer motor, brand is Oute, made in Shanghai;
  • Pneumatic control cutting table up/down;
  • Cutter lifting/down speed is controlled by air valve;
  • Paper stand is right angle type;
  • Automatic bottom lubricating;



Specification:

TSJG-100 two head type paper tube production line
Inner diameter of paper tube 30-100mm
Thickness of paper tube 2-15mm
Paper layers 3-25 layers
Production speed 0-22 MPM
Main motor power 15KW
Voltage 380V/220V, 60Hz
Cutter Circular blade
Length-control method Sensor control
Wrapping head quantity 4 heads
Cutting blade driving motor power 0.75KW
Glue Unit Multilayer gluing type
Paper Reel Stand Right angle type
Operator 2-3 persons
Head dimension ¢215mm, height 260/320mm
Two head distance 840-1180mm
Dimension 20000x15000x1900mm
Weight 4200KG
