Product Details:
|
| Power Supply: | 380V Or 220V Or 415V | Color: | Customized |
|---|---|---|---|
| Cutting Length: | 3000mm | Cutting Diameter: | 200-800mm |
| Graphic Format: | DXF, PLT, AI...etc. | Cutting Thickness: | 0.45mm, 0.71mm, 1.05mm...etc. |
| Laser Power: | 2000W | ||
| High Light: | 2000W Die Board Laser Cutter,Die Board Laser Cutter 3000mm |
||

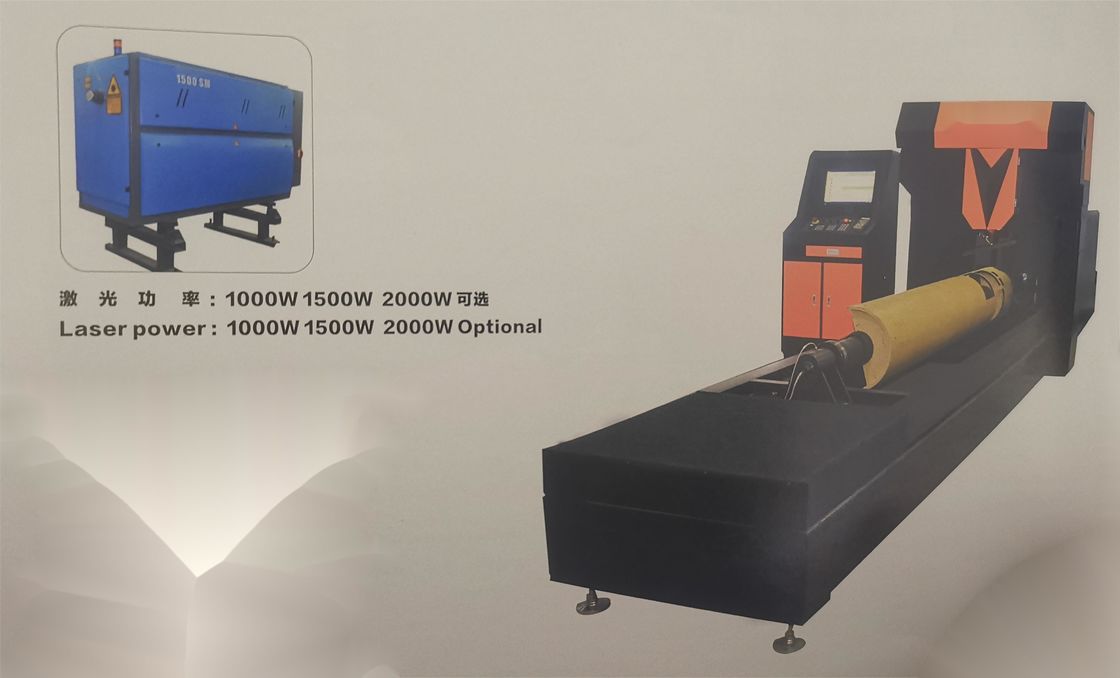

Rotary Die Board Laser Cutting Machine
Model: TSD-RC2000
Features:
High rigidity machine bed with annealing process to make sure the accuracy of the machine, and to be stable for a long time;
Imported servo motor, reducer and other precision components to ensure the machine's cutting accuracy;
Optimize the mixed optical path, simply operate, and even cutting slit;
Intelligent electronic follow-up laser head cutting system, adapt to the uneven materials automatically to ensure the same slit;
Strong smoke exhaust system, less smoke during working to get a good environment;
Freely design a variety of graphics or text instantly to be cut, it's simple and flexible;
Fast cutting speed, low operating costs,rapid return on investment.
Technical Specification:
| Model | TSD-RC2000 |
| Laser Power | 2000W |
| Cutting Length | 3000mm |
| Cutting Diameter | 200-800mm |
| Positioning Accuracy | ±0.1mm |
| Graphic Format | DXF,PLT, Al...etc |
| Laser Head Control | Auto Focusing |
| Cutting Thickness | 0.45mm, 0.71mm, 1.05mm...etc. |
| Machine Power Supply | 380V/50Hz/10A |
| Control System | Movement Control Card |
| Generator Weight | 4000KG |
| Operating Size | 760*650*1650mm |
| Machine Overall Dimension | 7800*1600*2200mm |
| HS CODE | 8456110090 |
