Semi Auto Honeycomb Paper Die Cutting Machine 5m/Min - 280m/min YNBFWJ-550

I'm Online Chat Now

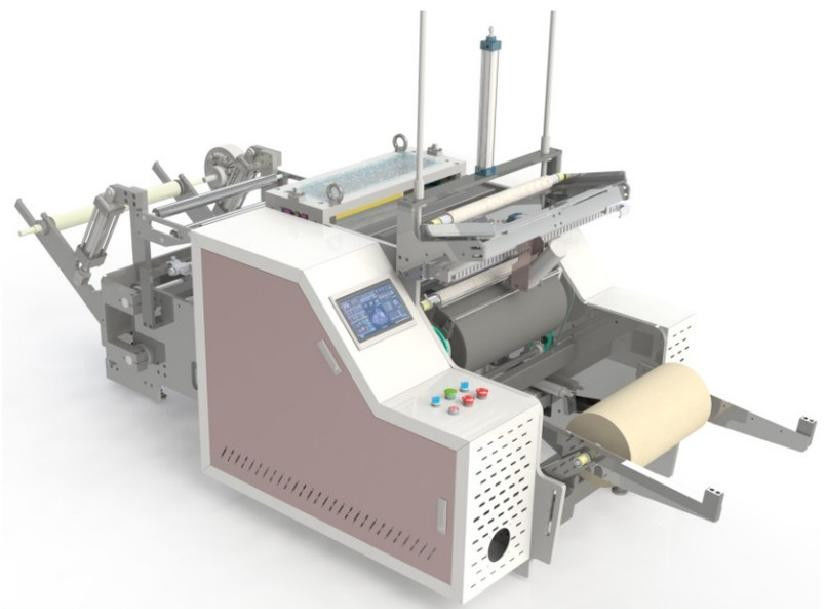

Semi Auto Honeycomb Paper Die Cutting Machine 5m/Min - 280m/min YNBFWJ-550

Semi Auto Honeycomb Paper Die Cutting Machine 5m/Min - 280m/min YNBFWJ-550
Semi Auto Honeycomb Paper Die Cutting Machine 5m/Min - 280m/min YNBFWJ-550

Large Image :  Semi Auto Honeycomb Paper Die Cutting Machine 5m/Min - 280m/min YNBFWJ-550

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: YNBFWJ-550
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

Semi Auto Honeycomb Paper Die Cutting Machine 5m/Min - 280m/min YNBFWJ-550

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Speed: 5-280m/min Effective Width Of Die-cutting Stick: 550mm
Effective Unwind Width: 540mm Die-cutting Roll: Skewed Tooth: φ240*600
Die Cutting Bottom Roller: Dia. 240*600 Wrap-up: Dia. 300 Roller Friction Winding
High Light:

Semi Auto Paper Die Cutting Machine

,

Honeycomb Paper Die Cutting Machine

,

Honeycomb Paper Cutting Machine 5m/Min

Semi-auto Honeycomb Paper Die-cutting Machine

Model: YNBFWJ-550



Characteristic:

  • Honeycomb paper can be an environmentally friendly and economical alternative to plastic foam packaging buffers. It has the characteristics of easy to stretch, soft, good elasticity and other characteristics. Can provide buffer protection for the packaged items.
  • The feeding mode of raw materials is the hydraulic feeding mode, without manual lifting. The collecting method is friction collection, which can place up to 5 paper rolls at the same time, and meanwhile, it can also rewind up to 5 finished rolls.
  • The core component of the machine adopts special cold die steel, cut the honeycomb paper is easy to stretch, with good honeycomb shape, good protection; also it can be used to make honeycomb paper bag. The cutting speed is 5~280m/min. Rewinding is up to diameter 300mm. Machine running noise is low, the die-cut roller is modular design, easy to disassembly.



Specification:

Model YNBFWJ-550
Speed 5~280m/min
Effective width of die-cutting stick 550mm
Effective unwind width 540mm
Power 5KW
Voltage 380V/50HZ
Dimension parameters Length 3550mm
Width 1260mm
Height 1680mm
Weight 1800kgs





Configuration List:

Configuration Name Q’ty Remarks
Auto winder 1pcs

Pneumatic paper tube + to number automatic cutting + to number automatic feed storage

Die-cutting roll 1pcs skewed tooth: φ240*600
Die cutting bottom roller 1pcs φ240*600(alloy steel/Main servo drive)
wrap-up 1pcs φ300 Roller friction winding
Automatic feeding device 1pcs 1.5KW hydraulic system
Automatic deviation correction system 1pcs 110 synchronous electric motor and cylinder correction




Products:
Semi Auto Honeycomb Paper Die Cutting Machine 5m/Min - 280m/min YNBFWJ-550 0 Semi Auto Honeycomb Paper Die Cutting Machine 5m/Min - 280m/min YNBFWJ-550 1  Semi Auto Honeycomb Paper Die Cutting Machine 5m/Min - 280m/min YNBFWJ-550 2
