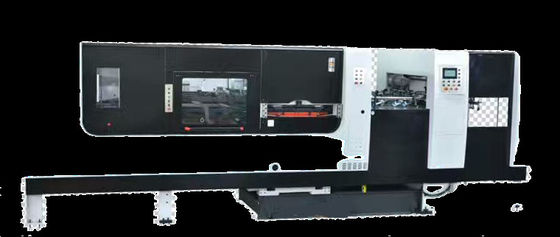

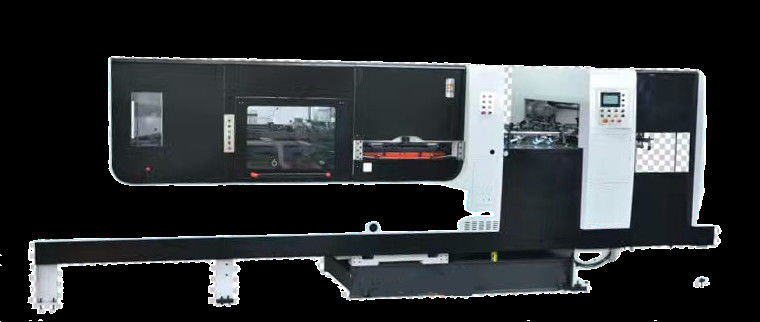

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Die Cutting Method: Flat Die Cutting Max. Sheet Size: 1620x1200mm
Min. Sheet Siz: 650x520mm Max.die Cutting Size: 1600x1180mm
Applicable Flute Type: E, B, C, A, AB, Colorful Corrugated Cardboard Thickness: 2-9mm Voltage: 220V Or 380V Or 415V
High Light:

Flat Die Cutting Machine Full Automatic

,

Flat Die Cutting Machine 26KW

,

Waste Cleaning Machine 26KW

Full-automatic Full Waste Cleaning Flat Die Cutter Machine

Model: LX1620-QP





Specification:

Model LX1620-QP
Die cutting method Flat die cutting (lower part works; top part keeps still)
Max. sheet size 1620x1200mm
Min. sheet size 650x520mm
Max.die cutting size 1600x1180mm
Max. Die cutting pressure 300N/cm2
Applicable flute type

E, B, C, A, AB, colorful corrugated cardboard

Thickness: 2-9mm

Min. side stripping edge width 10mm
Max. Revolution speed 5500r/hour
Blade and creasing line height 23.8mm
Max. stacking height for feeding 1760mm
Max. stacking height for collecting 1600mm
Main motor power 22KW (frequency control)
Total power 26KW
Voltage 380V±5%, 50Hz, 3 phase
Compressed air pump (customer self-prepared) Consumption: 0.35m3/min
Pressure regulating range 0-3mm
Machine dimension without platform 8770x2870x2500mm
Whole machine N. Weight 31 tons





Details of each section



Paper feeding section:

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 0

  • Applying of deceleration motor control, FEEDER is easy to operate. The suction nozzle stroke is double of common FEEDER, and the paper delivery stroke is 1.5 times of common FEEDER. Meanwhile, the performance is stable and smooth. It is especially applicable for large and thick corrugated paper.
  • Adjustment is more convenient and quick functioned with electric side stopper.
  • The lifting and lowering of the paper feeding frame is controlled by a cylinder, without manual lifting. Simply and gently pull the button could achieve.
  • The overall design of the paper feeding frame adopts the gear and rack structure, which can be adjusted arbitrarily according to the size of the paper, making the operation simple and convenient.



Die cutter section

  • Worm gear crank elbow type high-precision flat die-cutting work platform
  • Fixed high-precision flat die-cutting steel plate
  • Die cutting section with safety door and panel frame safety locking system
  • Pneumatic Clutch/Brake: A specially designed throttle/airflow buffering circuit system ensures smooth opening and closing of the pneumatic clutch, making the plate loosen difficult.
  • The machine has a multi-piece intermittent transmission mechanism and a torque bracket for overload protection in enter.

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 1

  • High precision RNO paper gripper chain
  • 8 lines of gripper, each with 12 (imported spring steel) components

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 2

  • Equipped with sensor at the paper inlet and outlet to detect paper positioning and paper size.
  • The die-cutting blade adopts the central positioning system.

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 3

  • Electronic display for malfunction and speed.
  • Forced automatic lubrication system to ensure the normal oil supply inside the main drive and automatic shutdown without oil to ensure the stable performance of the machine and increase the service life of the machine.
  • Gripper transmission chain equipped with independent automatic lubricating oil device.

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 4

  • The intermittent part of the main transmission adopts a high-precision gear transmission form to reduce machine noise, increase machine operation stability, and reduce the shaking of the gripper. Compared with chain transmission, noise is smaller.

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 5

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 6





Stripping unit

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 7

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 8

  • The stripping device adopts cam drive, which is stable and reliable. The waste discharging mold adopts linear bearing to slide. When the waste removal function is not required, the stripping action can be separated and suspended.
  • In the stripper mechanism, the clutch of the waste removal action adopts pneumatic control, the mechanism is simple and reliable.





Stacking unit

1. Available paper collection methods:

  • Automatic belt paper collecting.
  • Automatic paper pile lifting table.
  • Automatic paper collection with continuous belt running.
  • The belt can quickly and conveniently transfer paper piles, ensuring that there are no scratches or burrs in the printing process.

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 9



2. Paper collection with collecting table

  • Can add pneumatic paper collecting table or ordinary paper collecting platform as per customer’s requirement.

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 10

Remarks: The above paper collecting mechanism contains the optional pneumatic paper collecting device.



Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 11

  • The paper receiving sprocket is made of high-quality widened nylon material, which effectively reduces noise.



Electrical Control System

  • PLC controls the operation, and equipped with display to show fault monitoring.
  • Electrical components and electrical circuits adopt European and American safety standards.

Full Waste Cleaning Flat Die Cutting Machine Full Automatic 26KW LX1620-QP 12
