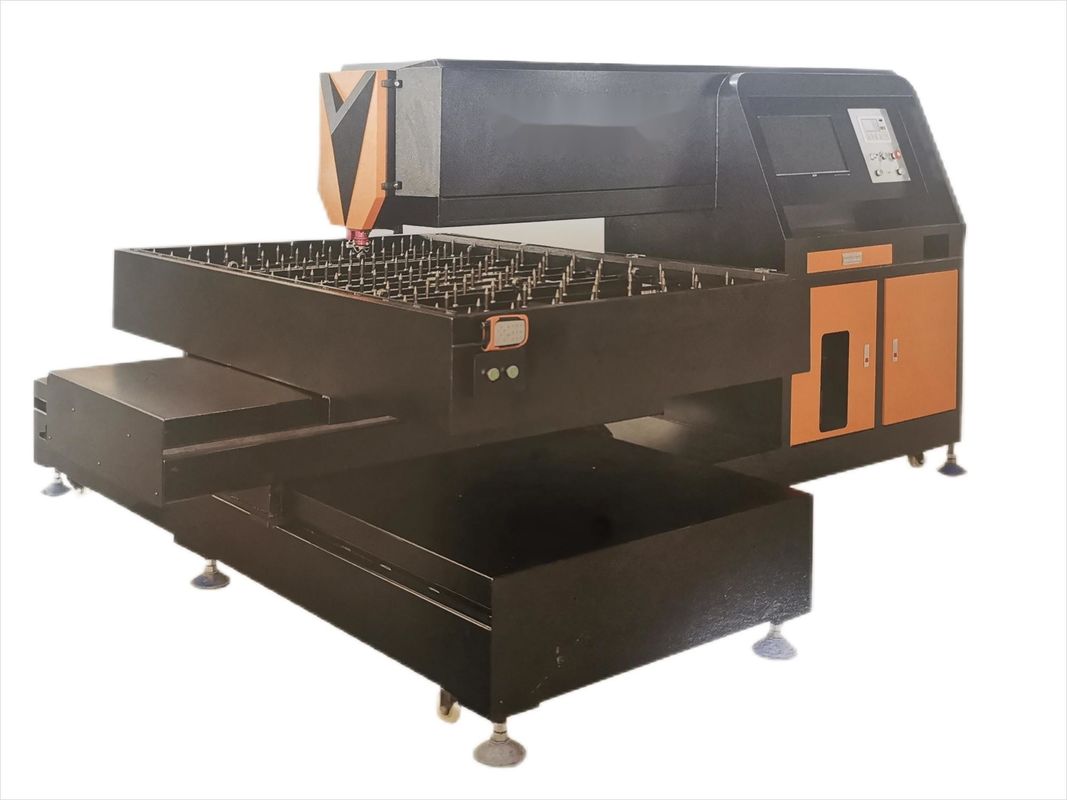

Medium Power Cardboard Die Cutter Machine 400W TSD-LC400-1218

I'm Online Chat Now

Medium Power Cardboard Die Cutter Machine 400W TSD-LC400-1218

Medium Power Cardboard Die Cutter Machine 400W TSD-LC400-1218
Medium Power Cardboard Die Cutter Machine 400W TSD-LC400-1218

Large Image :  Medium Power Cardboard Die Cutter Machine 400W TSD-LC400-1218

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: TSD-LC400-1218
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

Medium Power Cardboard Die Cutter Machine 400W TSD-LC400-1218

Description
Power Supply: 380V Or 220V Or 415V Color: Customized
Laser Type: CO2 Sealed Laser Tube Positioning Precision: ±0.05mm
Cutting Depth: 6-25mm Cutting Thickness: 0.45/0.71/1.05mm... Etc.
High Light:

Cardboard Die Cutter 400W

,

Medium Power Cardboard Die Cutter

Medium Power Die Board Laser Cutting Machine

Model: TSD-LC400-1218



Applicable Materials:
Plywood, MDF board, Acrylic and Steel Sheet...etc.

Applicable Industry:
It’s widely used in printing, packing, mould and advertising industries.



Features:

  • Fixed laser path,ensure stable optical path.
  • Laser head can be automatically adapt to jagged material,ensure uniform cutting seam.
  • Large gantry milling and high temperature heat treatment working table, can be used for long years without deformation.
  • Off-line control system,it's easy to set up cutting parameters on LCD screen.
  • Sealed laser path and clean environment offer a long-time lifespan for the lens.
  • High effective and optimized exhaust system to reduce smoke during working,and keep a healthy environment.



Technical Specification:

Model TSD-LC400-1218
Processing Scale 1200*1800mm
Laser Type CO2 Sealed Laser Tube
Transmission System Imported Ball Screw &Linear Guide
Control System Movement Control Card
Positioning Precision ±0.05mm
Cutting Depth 6-25mm
Cutting Thickness 0.45mm, 0.71mm, 1.05mm...etc
Chiller System Water Cooling
Machine Power Supply 220V 50Hz 20A
Laser Power 400W
Machine Weight 2000KG
Assistant Equipment Industrial Chiller, Exhaust Fan, Computer, Air Dryer
HS CODE 8456110090
