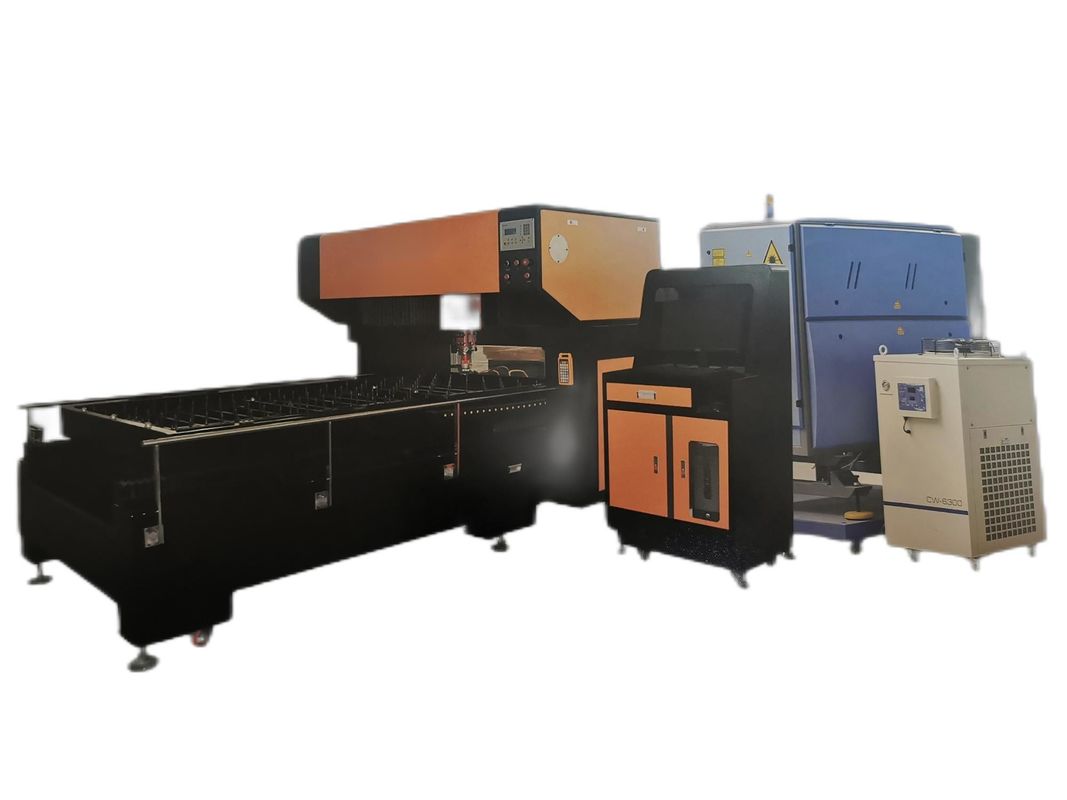

High Power Cardboard Die Cutter Machine 1000W / 1500KW / 2000KW TSD-LC1000-1218

I'm Online Chat Now

High Power Cardboard Die Cutter Machine 1000W / 1500KW / 2000KW TSD-LC1000-1218

High Power Cardboard Die Cutter Machine 1000W / 1500KW / 2000KW TSD-LC1000-1218
High Power Cardboard Die Cutter Machine 1000W / 1500KW / 2000KW TSD-LC1000-1218

Large Image :  High Power Cardboard Die Cutter Machine 1000W / 1500KW / 2000KW TSD-LC1000-1218

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: TSD-LC1000-1218
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

High Power Cardboard Die Cutter Machine 1000W / 1500KW / 2000KW TSD-LC1000-1218

Description
Power Supply: 380V Or 220V Or 415V Color: Customized
Re-positioning Precision: ≤0.02mm Cutting Precision: ±0.05mm
Graphic Format: DXF, PLT, AI...etc. Laser Type: High Power Axial Flow CO2
Laser Power: 1000W/1500KW/2000KW
High Light:

Cardboard Die Cutter 1000W

,

Cardboard Die Cutter 1500KW

High Power Die Board Laser Cutting Machine

Model: TSD-LC1000-1218



Applicable Materials:
Plywood, MDF board, Acrylic, iron board, steel board, stainless steel board, aluminum board, copper board...etc. most of m
etal and nonmetal materials...

Applicable Industry:
It’s widely used in printing, packing, die making, advertising signs, metal plates, lightfixture, hardware, electric equipment, automotive, electrical components...tec.



Features:

  • Gantry structure,stable working,small floor space required for machine.
  • Laser cutting head coming with automatic touching system,adapt to the jagged materials and keep cutting kerf precision.
  • Adopt Panasonic servo drive and motor system,Taiwan HIWIN precisionlinear guide rail to keep high precision cutting.
  • Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.



Technical Specification:


Model TSD-LC1000-1218
Processing Scale 1200*1800mm
Table Overall Dimension 3000*2300*1800mm(L*W*H)
Table Weight 2200KG
Cutting Precision ±0.05mm
Re-positioning Accuracy ≤0.02mm
Table Power Supply 220V50Hz10A
Graphic Format DXF,PLT, Al...etc
Laser Type High Power Axial Flow CO2 Laser Generator
Laser Power 1000W 1500W 2000W
Generator Weight 800KG 1200KG 1200KG
Generator Size 1900*850*1350mm 2300*950*1700mm 2300*950*1700mm
Generator Power Supply 380V/50Hz/15A 380V/50Hz/22A 380V/50Hz/24A
Working Gas Helium(He),Nitrogen(N2),Carbon Dioxide(CO2)
HS CODE 8456110090
