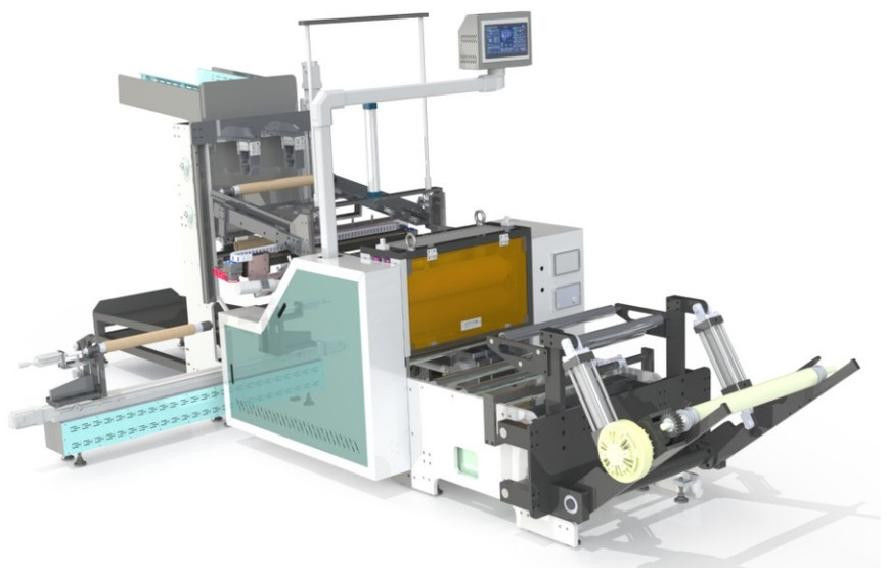

Automatic Honeycomb Paper Die Cutting Machine 5 - 280m/min Speed YNAFWJ-550

Automatic Honeycomb Paper Die Cutting Machine 5 - 280m/min Speed YNAFWJ-550
Automatic Honeycomb Paper Die Cutting Machine 5 - 280m/min Speed YNAFWJ-550

Large Image :  Automatic Honeycomb Paper Die Cutting Machine 5 - 280m/min Speed YNAFWJ-550

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: YNAFWJ-550
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

Automatic Honeycomb Paper Die Cutting Machine 5 - 280m/min Speed YNAFWJ-550

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Speed: 5-280m/min Effective Width Of Die-cutting Stick: 550mm
Effective Unwind Width: 540mm Die-cutting Roll: Skewed Tooth: φ240*600
Die Cutting Bottom Roller: Dia. 240*600 Wrap-up: Dia. 300 Roller Friction Winding
High Light:

Honeycomb Paper Die Cutting Machine

,

Automatic Paper Die Cutting Machine

Automatic Honeycomb Paper Die-cutting Machine

Model: YNAFWJ-550


Characteristic:

  • Honeycomb paper can be an environmentally friendly and economical alternative to plastic foam packaging buffers. It has the characteristics of easy to stretch, soft, good elasticity and other characteristics. Can provide buffer protection for the packaged items.
  • The feeding mode of raw materials is the hydraulic feeding mode, without manual lifting. The collecting method is friction collection with special paper roll storage area, which can place up to 40-50 paper rolls. There is no need to be supervised during the machine running, and the machine automatically completes the honeycomb paper roll.
  • The core component of the machine adopts special cold die steel, cut the honeycomb paper is easy to stretch, with good honeycomb shape, good protection; also it can be used to make honeycomb paper bag. The cutting speed is 50~280m/min. Rewinding is up to diameter 300mm. Machine running noise is low, the die-cut roller is modular design, easy to disassembly.


Specification:

Model YNAFWJ-550
Speed 50~280m/min
Effective width of die-cutting stick 550mm
Effective unwind width 540mm
Power 6KW
Voltage 380V/50HZ
Dimension parameters Length 4840mm
Width 2288mm
Height 2100mm
Weight 2500kgs



Configuration List:

Configuration Name Q’ty Remarks

Automatic tube loading
device

1pcs

Automatic loading of paper tube
Automatic loading of inflatable shaft
Automatic pumping
Automatic placement of inflatable shaft

Automatic winding of inflatable shaft
Automatic placement of finished product

Die-cutting roll 1pcs skewed tooth: φ240*600
Die cutting bottom roller 1pcs φ240*600(alloy steel/Main servo drive)
wrap-up 1pcs φ300 Roller friction winding
Automatic feeding device 1pcs 1.5KW hydraulic system
Automatic deviation correction system 1pcs 110 synchronous electric motor and cylinder correction
