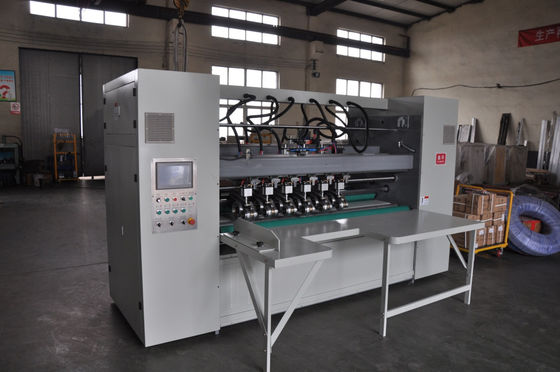

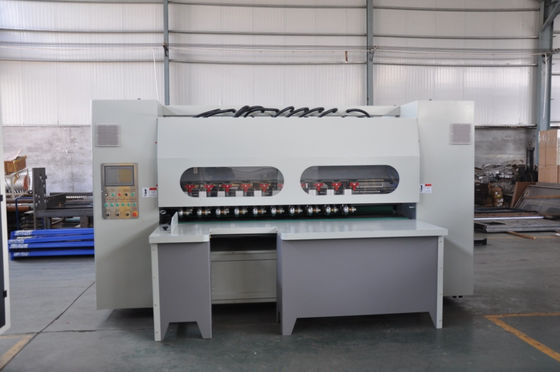

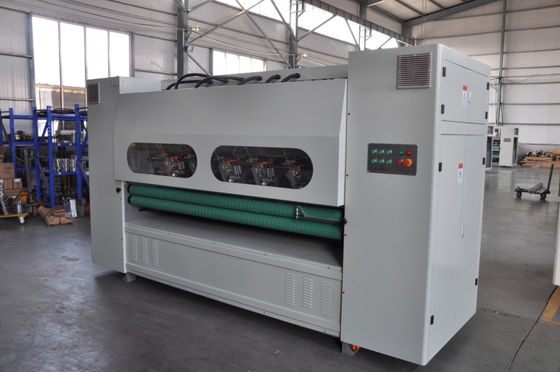

Offline Servo Computer Control Thin Blade Slitter Scorer Machine 11KW 200m/min

I'm Online Chat Now

Offline Servo Computer Control Thin Blade Slitter Scorer Machine 11KW 200m/min

Offline Servo Computer Control Thin Blade Slitter Scorer Machine 11KW 200m/min
Offline Servo Computer Control Thin Blade Slitter Scorer Machine 11KW 200m/min Offline Servo Computer Control Thin Blade Slitter Scorer Machine 11KW 200m/min Offline Servo Computer Control Thin Blade Slitter Scorer Machine 11KW 200m/min

Large Image :  Offline Servo Computer Control Thin Blade Slitter Scorer Machine 11KW 200m/min

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: BFY-2500NCD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Offline Servo Computer Control Thin Blade Slitter Scorer Machine 11KW 200m/min

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Design Speed: 200m/min Max. Slitting Width: 2200mm
Min. Slitting Width: 140mm Min. Scoring Width: 140mm
Scoring Height: 0-10mm
High Light:

Thin Blade Slitter Scorer 200m/min

,

Thin Blade Slitter Scorer Machine 11KW

Offline Servo Computer Control Thin Blade Slitter Scorer

Model: BFY-2500NCD





Characteristics:

  • Whole machine adopt servo and PLC control system. Input order data and change order fast;
  • Store 999 order data;
  • Pneumatic control blade and scorer lifting;
  • Auto grinding and manual grinding both available;
  • Blade use tungsten material;
  • Both pre-creasing and creasing are used to prevent corrugated damaged;
  • Synchronous belt used for transmitting system;
  • Blade and scorers moving through linear rail and ball screw;
  • Order change time: 20-60 seconds.



Specification:

Model BFY-2500NCD
Design speed 200m/min
Max. slitting width 2200mm
Min. slitting width 140mm
Min scoring width 140mm
Scoring height 0-10mm
Blade size 200-122-1.2mm
Creasing wheel OD 156mm
Blade quantity 4 pcs
Creasing wheel quantity 6 pcs
Air pressure 0.6-0.8MPa
Power 11KW
Machine dimension 3700X1250X2000mm
Machine weight 3500KG
