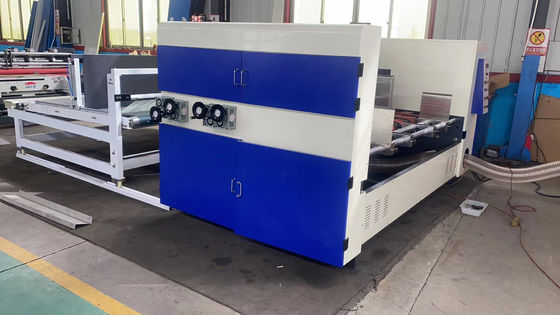

Thin Blade Corrugated Slitter Scorer Machine 120m/min With Auto Belt Feeder

I'm Online Chat Now

Thin Blade Corrugated Slitter Scorer Machine 120m/min With Auto Belt Feeder

Thin Blade Corrugated Slitter Scorer Machine 120m/min With Auto Belt Feeder
Thin Blade Corrugated Slitter Scorer Machine 120m/min With Auto Belt Feeder

Large Image :  Thin Blade Corrugated Slitter Scorer Machine 120m/min With Auto Belt Feeder

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: BFY-3500ZSD7
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Thin Blade Corrugated Slitter Scorer Machine 120m/min With Auto Belt Feeder

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Max Speed: 120m/min Width Of Board: 3200mm
Max. Feeding Length: 1500mm Min. Feeding Length: 435mm
Min. Slitting Width: 140mm Min. Creasing Width: 55mm
Sheet Thickness: 1-10mm
High Light:

Thin Blade Corrugated Slitter Scorer Machine

,

Corrugated Slitter Scorer Machine 120m/Min

Thin Blade Slitter Scorer Machine with Auto Belt Feeder

Model: BFY-3500ZSD7

Characteristics:

  • 1.2 mm thin edge slitter with both automatic and manual grinding.
  • Total eight shafts: first is sheet transmitting shafts, second is slitting blade shaft, third is rubber transmitting roller, forth is creasing wheel shaft.
  • Creasing wheel is male to female type.

SPECIFICATION

Model BFY-3500ZSD7
Max Speed 120m/min
Max. width of board 3200mm
Max. feeding length 1500mm
Min. feeding length 435mm
Quantity of slitting tool 7 nos
Quantity of creasing wheel 12 nos
Min. slitting width 140mm
Min. creasing width 55mm
Sheet thickness 1-10mm
Blade size Ø190x122x1.2mm
Weight 3500KG
Power 11KW
Dimension

4200x3800x1500mm



Feeding part

  • Sheet feeding width adjustment is operated through screw pole manually;
  • Sheet feeding length is adjustable, the rear stop can be adjusted by chain manually;
  • Feeding belt is seamless belt, big friction and long working life;
  • Double tension control system, make machine more stable
  • Belt transmitting shaft's surface is knurled, for increasing friction between shaft and belt, to make sure successful feeding;

Slitting part

  • Total four pairs shafts for the slitting part. First pair shaft is rubber roller, second pair shafts is thin blade shaft and blade holder shaft, third pair shaft is also rubber roller, forth pair shafts are creasing shafts;
  • Two pairs of rubber roller is put to the first pair shaft and third pair shaft position, can make sure minimum sheet slitting length could be 350mm;
  • Slitting size adjustment: Electric adjustment;
  • Blade made with Tungsten alloy steel, make sure good cutting and long working life;
  • Creasing wheels include top wheel and bottom wheel. Top wheel with two lines and bottom wheel with three lines;
  • Blade grinding system include automatic model and manual model, customer can choose the model as per true requirement;
  • Electric parts use China and International famous brand, like Chint, People, Siemens, Schneider;
