Electric Regulating Heavy Duty Slitter Scorer Machine Eight Shaft Type With Pre-Creaser

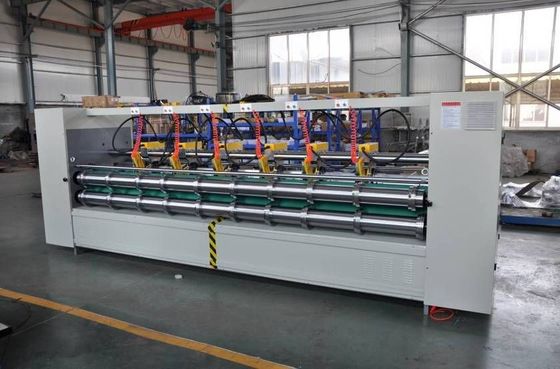

Large Image : Electric Regulating Heavy Duty Slitter Scorer Machine Eight Shaft Type With Pre-Creaser

Product Details:

Place of Origin:	CHINA
Brand Name:	AMC MACHINERY
Certification:	CE
Model Number:	BFY-3200HD-E

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate
Packaging Details:	Corrugated box and plastic film
Delivery Time:	40 working days
Payment Terms:	T/T
Supply Ability:	5 sets per month

Contact Now

Electric Regulating Heavy Duty Slitter Scorer Machine Eight Shaft Type With Pre-Creaser

Description

Voltage:	220V Or 380V Or 415V	Color:	Customized
Max Speed:	180m/min	Width Of Board:	3000mm
Thickness Of Board:	12-20mm
Highlight:	Electric Regulating Slitter Scorer Machine , Heavy Duty Slitter Scorer Machine

Heavy Duty Thin Blade Slitter Scorer

Model: BFY-3200HD-E, Eight shaft type with pre-creaser, electric regulating

Characteristics:

1.3 mm thin edge slitter with both automatic and manual grinding.
Double shafts holding the slitting base.
Total eight shafts: first is pre-creasing shafts, second is slitting blade shafts, third is transmitting rubber shafts, forth is creasing wheel shafts.
Pre-creasing is top shaft with flat wheels and bottom shaft with pre-creasing wheels.
Corrugated board edge pressing wheel is installed on pre-creasing shaft.
Creasing wheel is male to female, two part type.
Electric adjustment of slitting blade
Two motor drive
Feeding table width: 800mm
Side stop size: 800mm long, 100mm high

Specification:

Model	BFY-3200HD-E
Max Speed	180m/min
Width of board	3000mm
Thickness of board	12-20mm
Quantity of slitting tool	4 nos
Quantity of creasing wheel	6 nos
External diameter of thin blade	200mm
Pre-creaser	Installed
Thickness of slitter	1.3mm
Min. slitting width	140mm
Min. creasing width	60mm
Min. Sheet length	520mm
Diameter of creasing wheel	185mm
Diameter of creasing shaft	110mm
Diameter of pre-creasing wheel	167mm
Diameter of pre-creasing shaft	127mm
Feeding table height	830mm
Feeding table width	800mm
Power (Two motor driving)	15KW (7.5+7.5)
Machine weight	2970KG
Machine dimension	4100x1800x1600mm

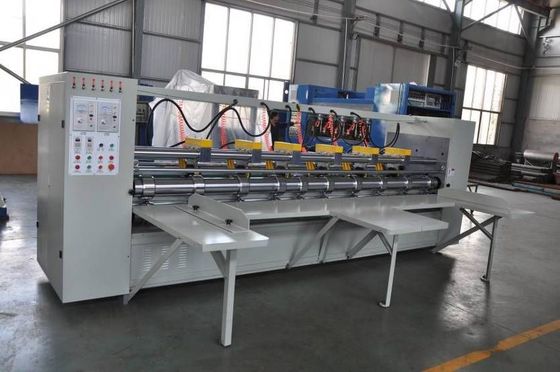

Photos:
Electric Regulating Heavy Duty Slitter Scorer Machine Eight Shaft Type With Pre-Creaser 0
