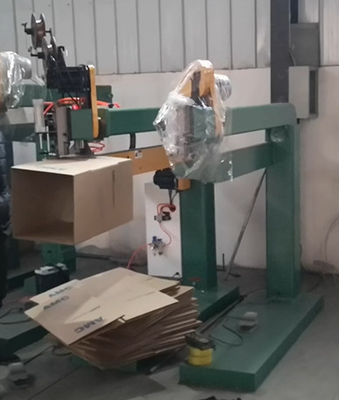

Manual Servo Drive Box Stitching Machine 3.0KW 0.75mm Wire thickness SDX-1000

I'm Online Chat Now

Manual Servo Drive Box Stitching Machine 3.0KW 0.75mm Wire thickness SDX-1000

Manual Servo Drive Box Stitching Machine 3.0KW 0.75mm Wire thickness SDX-1000
Manual Servo Drive Box Stitching Machine 3.0KW 0.75mm Wire thickness SDX-1000

Large Image :  Manual Servo Drive Box Stitching Machine 3.0KW 0.75mm Wire thickness SDX-1000

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SDX-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Manual Servo Drive Box Stitching Machine 3.0KW 0.75mm Wire thickness SDX-1000

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Nailing Rate: 160-500 Nails/min Max. Height Of Case: 1000mm
Wire Width: 1.75/1.9mm Wire Thickness: 0.75mm
Stitch Type: 1 Or 2 Wire Stitches In 45° Stitching Interval: 30-120mm
Corrugated Carton Thickness: 2-8mm
High Light:

Servo Drive Box Stitching Machine

,

Box Stitching Machine 3.0KW

Manual servo drive stitching machine

Model: SDX-1000



Characteristics:

  • Use double servo motor to control stitching and feeder
  • Stitching speed adjustable from 150 nails/min to 400 nails/min
  • Wire cutter use alloy steel



Specification:

Model 1000(39")
Nailing rate 160-500 nails/min
Max. height of case 1000mm
Wire width 1.75/1.9mm
Wire thickness 0.75mm
Substance of the stitch wire Wiry plated with Zinc or Copper
Type of stitch wire Straight wire
Stitch type 1 or 2 wire stitches in 45°
Stitching interval 30-120mm
Corrugated carton thickness 2-8mm
Power (kw) 3.0kw
Weight (kg) 600kg
