Semi Automatic Box Stitching Machine Single / Double / Tie Stitching For One Sheet

I'm Online Chat Now

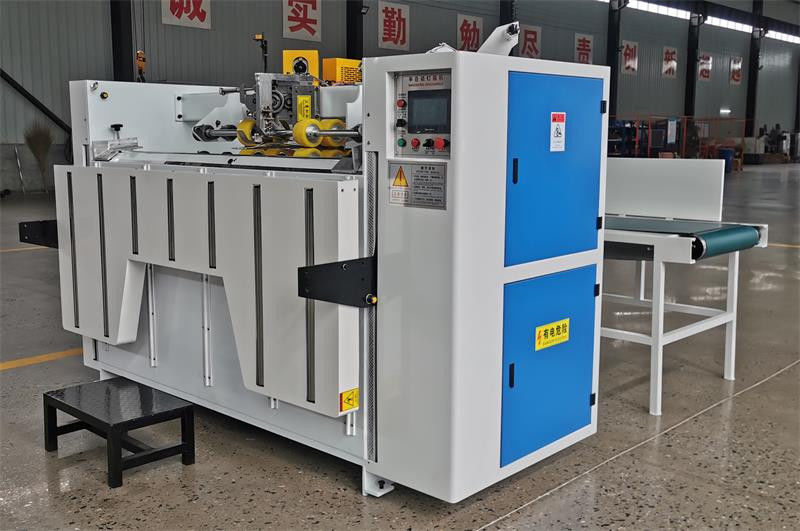

Semi Automatic Box Stitching Machine Single / Double / Tie Stitching For One Sheet

Semi Automatic Box Stitching Machine Single / Double / Tie Stitching For One Sheet
Semi Automatic Box Stitching Machine Single / Double / Tie Stitching For One Sheet

Large Image :  Semi Automatic Box Stitching Machine Single / Double / Tie Stitching For One Sheet

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SAT-3600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Semi Automatic Box Stitching Machine Single / Double / Tie Stitching For One Sheet

Description
Voltage: 220V Or 380V Or 415V Color: Customized
No. Of Nails: 2-99 Nails Stitching Speed: 650 Nails/min
Max. Stacking Height: 850mm Wire Type: 17#, 18#
Stitch Type: Single Stitching / Double Stitching / Tie Stitching
High Light:

Semi Automatic Box Stitching Machine

,

Semi Auto Box Stitching Machine

Semi-automatic stitcher

Model: SAT-3600



Characteristics:

  • Max. stitching speed: 650 nails/min
  • Stitching pitch:30-120MM
  • Single stitching, double stitching and tie stitching are available.
  • Automatic counter and eject boxes by stacks.
  • Can do special box without cover(min. 25mm for first nail position to sheet edge)
  • Wire type: 17#, 18#
  • Suitable for one sheet
  • PLC control and touch screen display error message for trouble shooting.
  • Quick order change through touch screen within 1 minute.
  • Suitable for 3 ply, 5 ply box, also for box without cover.



Specification

Semi Automatic Box Stitching Machine Single / Double / Tie Stitching For One Sheet 0



Model SAT-3600
Max. Sheet width [(A+B)x2] 3600mm
Min. Sheet width [(A+B)x2] 740mm
Max. Sheet Length(C+D+C) 1500mm
Min. Sheet Length(C+D+C) 320mm
Max. Box length (A) 1100mm
Min. Box length (A) 200mm
Max. Box width (B) 700mm
Min. Box width (B) 165mm
Max. Box cover (C) 420mm
Min. Box cover (C) 0mm
Max. Box height (D) 1500mm
Min. Box height (D) 185mm
Max. Flap width (E) 40mm
Max. stacking height 850mm
No. of nails 2-99 nails
Stitching Speed 650 nails/min
Power 5.0KW
Dimension 3000 x 3000 x 1600mm
Machine Weight 2000kg



Photos:

Semi Automatic Box Stitching Machine Single / Double / Tie Stitching For One Sheet 1
