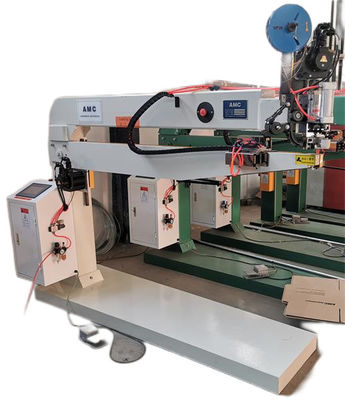

Heavy Duty Manual Servo Drive Box Stitching Machine 150 - 400 Nails/min SDX-1600HD

I'm Online Chat Now

Heavy Duty Manual Servo Drive Box Stitching Machine 150 - 400 Nails/min SDX-1600HD

Heavy Duty Manual Servo Drive Box Stitching Machine 150 - 400 Nails/min SDX-1600HD
Heavy Duty Manual Servo Drive Box Stitching Machine 150 - 400 Nails/min SDX-1600HD

Large Image :  Heavy Duty Manual Servo Drive Box Stitching Machine 150 - 400 Nails/min SDX-1600HD

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SDX-1600HD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Heavy Duty Manual Servo Drive Box Stitching Machine 150 - 400 Nails/min SDX-1600HD

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Nailing Rate: 160-500 Nails/min Max. Height Of Case: 1600mm
Wire Width: 1.75/1.9mm Wire Thickness: 0.75mm
Stitch Type: 1 Or 2 Wire Stitches In 45° Stitching Interval: 30-120mm
Corrugated Carton Thickness: 6-15mm
High Light:

Heavy Duty Box Stitching Machine

,

Box Stitching Machine 400 Nails/Min

Heavy Duty Manual Servo Drive Stitching Machine

Model: SDX-1600HD



Characteristics:

  • Use double servo motor to control stitching and feeder
  • Stitching speed adjustable from 150 nails/min to 400 nails/min
  • Wire cutter use alloy steel



SPECIFICATION:

Model 1600(63")
Nailing rate 160-500 nails/min
Max. height of case 1600mm
Wire width 1.75/1.9mm
Wire thickness 0.75mm
Substance of the stitch wire Wiry plated with Zinc or Copper
Type of stitch wire Straight wire
Stitch type 1 or 2 wire stitches in 45°
Stitching interval 30-120mm
Corrugated carton thickness 6-15mm
Power (kw) 3.0kw
Weight (kg) 700kg
