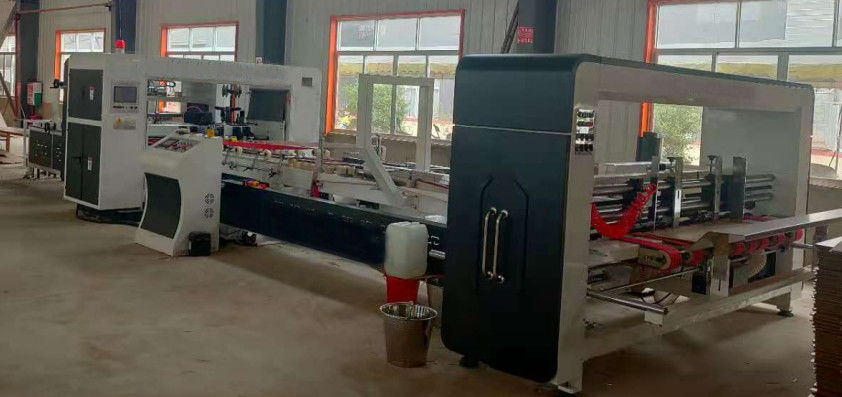

Automatic Box Stitching Machine AST-2800WCS Customized Color

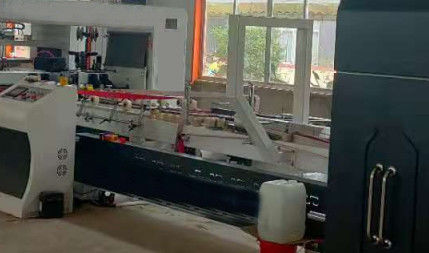

Automatic Box Stitching Machine AST-2800WCS Customized Color
Automatic Box Stitching Machine AST-2800WCS Customized Color Automatic Box Stitching Machine AST-2800WCS Customized Color Automatic Box Stitching Machine AST-2800WCS Customized Color

Large Image :  Automatic Box Stitching Machine AST-2800WCS Customized Color

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: AST-2800WCS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Automatic Box Stitching Machine AST-2800WCS Customized Color

Description
Voltage: 220V Or 380V Or 415V Color: Customized
No. Of Nails: 1-99 Nails Max. Stacking Height: 500mm
Interfacing Nails Interval: 30-100mm Stitching Speed: 800 Nails/min
Working Speed: 40-70 Pcs/min
High Light:

Automatic Box Stitching Machine

,

Box Stitching Machine Customized Color

Automatic Stitcher

Model: AST-2800WCS





Characteristics:

  • The AST-2800WCS automatic stitcher include three parts: Vacuum feeding unit, folding section and stitching unit.
  • Control cabinet is digital display, PLC control, can store 100 orders’ information.
  • Dual frequency converter running synchronously.
  • Auto feeding, auto folding, auto stitching, auto counting, auto lateral output



Details of each unit:

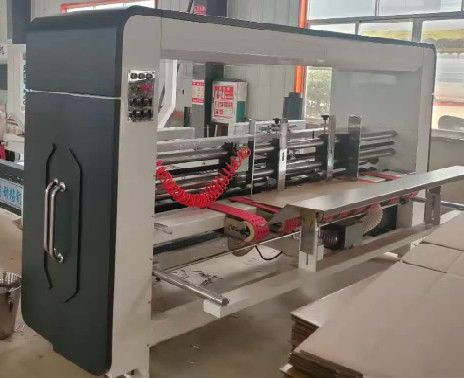

Feeding unit

  • Belt lead edge feeder with bottom vacuum suction. Increase feeding accuracy.
  • Electromagnetic clutch and electromagnetic brake are used to control the feeder.
  • Creasing wheel gap is adjustable, suitable for corrugated board with thickness 2-10mm
  • Frequency converter control feeding speed, can track the speed of folding stitching unit
  • Feeder side stopper and feeding belt can move in lateral direction

Folding section

  • Frequency converter control speed
  • Belt transmit paper sheet and do folding job



Stitching unit

  • Dual servo motor drive the stitching unit with high accuracy and very few fault
  • PLC control and operate on touch screen. Can save order data and running order data
  • Switches in electric control cabinet are made in Taiwan
  • Nails bending die and wire cutter are made with wearable tungsten alloy steel
  • Buttons and switches outside of the electric control cabinet are made in Taiwan
  • Order data regulation can be finished in two minutes
  • Single stitching (“/ / / / /”), double stitching (“// // // //”)
  • Auto counter on feeding unit
  • Automatic lateral ejecting after stitching
  • Interfacing nails interval could be 30-100mm. Can be selected on touch screen
  • Can adjust the machine to make it work on 3-ply board and 5-ply board



Specification:

Automatic Box Stitching Machine AST-2800WCS Customized Color 0



Model AST-2800WCS
Max. Sheet width (A+B)x2 2800mm
Min. Sheet width (A+B)x2 800mm
Max. box length (A) 800mm
Min. box length (A) 230mm
Max. box width (B) 500mm
Min. box width (B) 170mm
Max. Sheet Length (C+D+C) 1100mm
Min. Sheet Length (C+D+C) 300mm
Max. cover size (C) 400mm
Min. cover size (C) 100mm
Max. box height (D) 700mm
Min. box height (D) 150mm
Max. box flap size 40mm
Min. box flap size 30mm
Max. stacking height 500mm
No. of nails 1-99 nails
Interfacing nails interval 30-100mm
Stitching Speed 800 nails/min
Working speed 40-70 pcs/min
Total power 15KW
Power consumption 8.0 KW/H
Compressed air pressure 0.6MPa
Dimension 12000 x 3500 x 1700mm
Machine Weight 5000kg
