High Speed Cardboard Paper Laminating Machine AC 380V 50HZ 16KW SDX-CL1410

I'm Online Chat Now

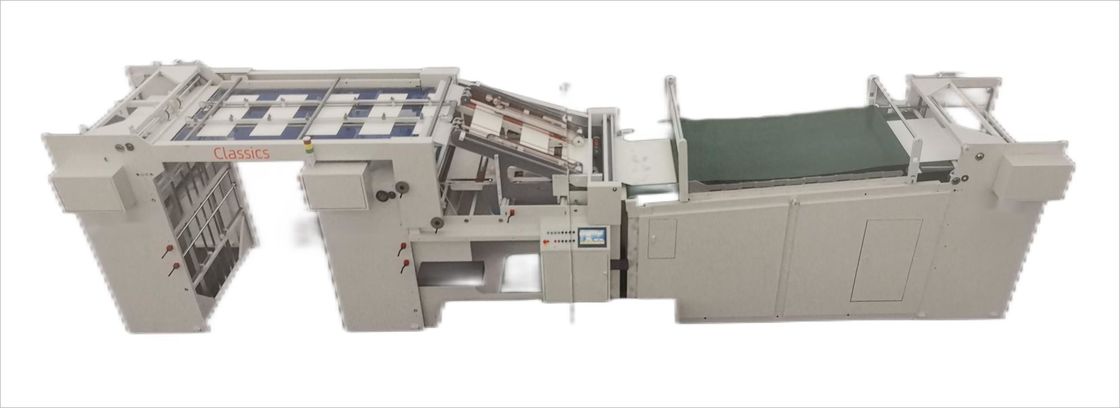

High Speed Cardboard Paper Laminating Machine AC 380V 50HZ 16KW SDX-CL1410

High Speed Cardboard Paper Laminating Machine AC 380V 50HZ 16KW SDX-CL1410
High Speed Cardboard Paper Laminating Machine AC 380V 50HZ 16KW SDX-CL1410

Large Image :  High Speed Cardboard Paper Laminating Machine AC 380V 50HZ 16KW SDX-CL1410

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SDX-CL1410
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

High Speed Cardboard Paper Laminating Machine AC 380V 50HZ 16KW SDX-CL1410

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Max. Paper Size: 1400 X 1000 Mm Min. Paper Size: 450 X 450 Mm
Thickness Of Top Sheet: 100-800g/m2 Thickness Of Bottom Sheet: 180-1800g/m2
Max. Speed: 105pcs/min (depends On Paper Condition)
High Light:

Cardboard Paper Laminating Machine

,

Paper Laminating Machine 50HZ

Classic High-speed Cardboard Laminator

Model: SDX-CL1410



Features:

  • Unique Dynamic Aligning System (Synchronized Laminating Mechanism): The speed difference between faster paper delivering and front stopper moving advances the paper to reach the front stopper, and paper sides are aligned synchronously with side stoppers to ensure upper and lower paper being aligned and laminated perfectly.
  • Transmission System: The planet-type system allows smooth and even distribution power transmission by a complete set of timer belts. Free maintenance, low noise and high efficiency.
  • Low E-type Paper Holder Plate: Convenient for quick paper replenishment by pushing pallet trolley directly to the holder plate, or rail track is also available. Optimum E-type holder plate and high speed elevating mechanism shorten lead time of paper replenishment and increase efficiency.
  • Newly Developed Front-top Suction Feeder: No need for adjustment during paper-size change that fresh operator can run the machine without intensive training. No suction mechanism above paper stacker offers more Spacious operation room.
  • Vibra-loose Collecting Mechanism: Capable of loosening mullet-laid laminated sheets and pushing neatly to ensure smooth collection of paper. E-type holder plate and high speed elevator jointly pull out laminated sheets rapidly and conveniently, which greatly increase the working efficiency.
  • Motorized calibration of running speed and pressing paper Length allows easy change-over of different paper sizes. Laminated sheets can be overlapped together or pressed individually. The newly added extra roller set can apply repeated heavy pressure on thinner finished sheets for the second time to ensure smooth and exquisite lamination.
  • Three sets of HMI system: Man-machine Interface,Voice Alarm and Lamp Indicating PLC. Automatically detecting running condition, irregularities, maintenance and job record. Selected electronic elements perfect both operation and safety.
  • Specially Designed High Precision Coating Mechanism: The precision of gluing roller and glue adjusting roller can reach less than 0.01mm, and glue coating volume can be adjusted to as little as 0.02mm.Auto Glue Level Control: Accurately adjust coating volume required be different paper to ensure even gluing. Convenient Paper Separator: Separate the paper from the gluing roller quickly and easy for dismantling, cleaning and calibration of the gluing roller.
  • Side Stopper of Gluing Roller: Delicate side stopper can wipe the glue back to the roller to prevent roller ends at high speed from glue overflowing, and it can also adjust back flow of the glue to guarantee smooth running of gluing system.





Parameter:

Model SDX-CL1410
Max. Paper size 1400*1000mm
Min. Paper size 450*450mm
Thickness of top sheet 100-800g/m2
Thickness of bottom sheet 180-1800g/m2
Max. speed 105pcs/min (depends on paper condition)
Accuracy ±0.5mm (standard hard flat paper)
Machine dimension

10250*2770*2180mm

Machine weight 7500kgs
Operating space 3*12m
Power supply AC 380V/50HZ/16KW







Dimension drawing

High Speed Cardboard Paper Laminating Machine AC 380V 50HZ 16KW SDX-CL1410 0



Model SDX-CL1410
A 2180mm
B 800mm
C 2656mm
D 800mm
E 2067mm
F 3000mm
G 927mm
H 10250mm
I 2770mm



Notes:

  • Operating speed for optimum production will vary with size of product and paper quality specification are only for reference.
  • Specifications and dimensions are subject to change without notice.
  • Other specification are also available as requested.
