Product Details:
|
| Power Supply: | 380V OR 220V OR 415V | Color: | Customized |
|---|---|---|---|
| Max. Feed Width: | 1500mm | Machine Speed: | 150m/min |
| Film Thickness: | 12 To 50 Micron | Paper Grammage: | 200-450gsm |
| Voltage: | 220V Or 380V Or 415V | ||
| Highlight: | 200gsm Paper Laminating Machine,450gsm Paper Laminating Machine,Roll To Roll Plastic Film Laminating Machine |
||

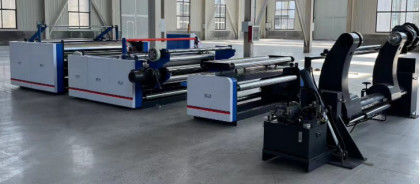

Roll to roll plastic film laminating machine
Model: JFM-1600
Machine application:
This machine is on the first base material of a thin film cylindrical material, and evenly apply a layer of organic chemical adhesive, and immediately press the second substrate to stress and stick it. Composite materials.
Specification:
| Model | JFM-1600 |
| Maximum feed width | 1500mm |
| Machine speed | 150m/min |
| Paper Grammage | 200-450gsm |
| Film Material | BOPP film |
| Film Thickness | 12 to 50 micron |
| Total power | 55.5KW |
| Dimensions | 9000x2800x1500mm |
| Weight | 8000KG |
Machine structure:
Hydraulic paper reel stand
Independent motor drive
The guiding system can ensure the film laminating accuracy
The guide shaft is balancing guide roller, made with aluminum alloy
Film unwinding adopt air expanding shaft
Tensor controlled by the torque controller
Rewinding are controlled by a torque motor
