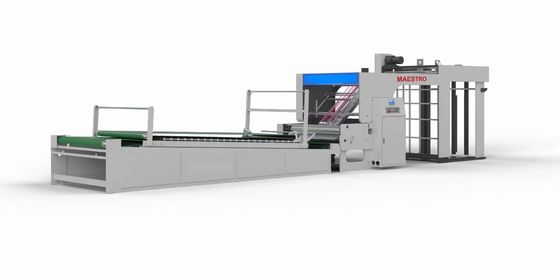

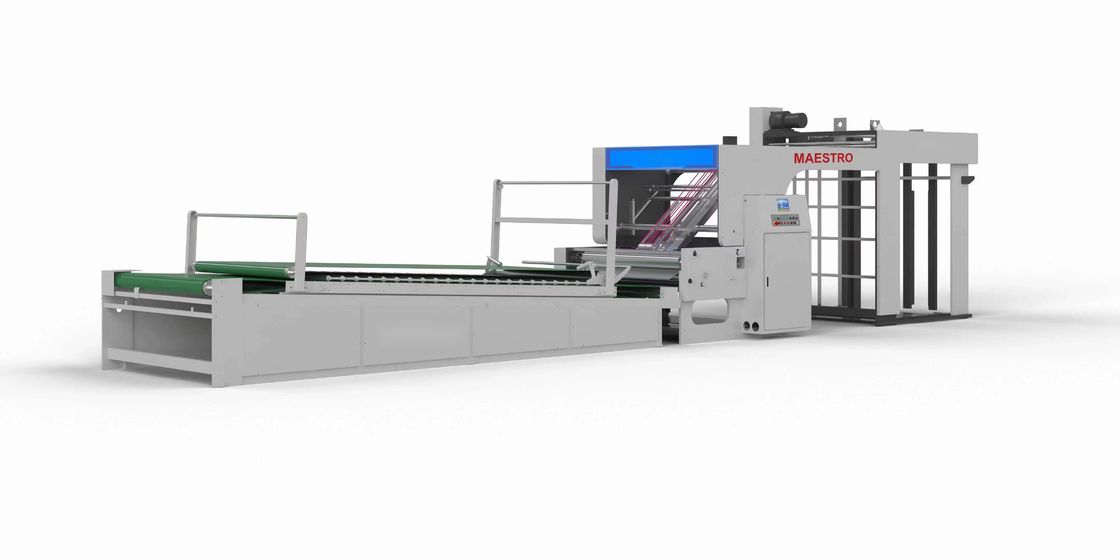

Mastro Paper Laminating Machine High Speed 30 - 150m/min SDX-M1450

I'm Online Chat Now

Mastro Paper Laminating Machine High Speed 30 - 150m/min SDX-M1450

Mastro Paper Laminating Machine High Speed 30 - 150m/min SDX-M1450
Mastro Paper Laminating Machine High Speed 30 - 150m/min SDX-M1450

Large Image :  Mastro Paper Laminating Machine High Speed 30 - 150m/min SDX-M1450

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SDX-M1450
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

Mastro Paper Laminating Machine High Speed 30 - 150m/min SDX-M1450

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Max. Paper Size: 1450 X 1450 Mm Min. Paper Size: 400 X 350 Mm
Thickness Of Top Sheet: 120-600g/m2 Thickness Of Bottom Sheet: 0.5-10 Mm
Speed: 30~150m/min
High Light:

Paper Laminating Machine High Speed

,

Paper Laminating Machine 150m/Min

Mastro High-speed Laminator

Model: SDX-M1450


Performance Feature:

  • Water is applied evenly on backside of bottom paper
  • Automatic grease lubrication
  • Paper pallets loaded to feeder by forklift



Back feeder-Technical Data:



Model SDX-M1450
Max.Paper size 1450*1450mm
Min.Paper size 400*350mm
Thickness of top sheet 120-600g/m2
Thickness of bottom sheet 0.5-10mm
Speed 30~150 m/min
Accuracy ±1.5mm
Machine Weight 7000Kgs
Dimension(L*W*H) 12744*2492*2630mm
Power AC380/50HZ/26kw
Suitable Paper

Singleface(fluteA-G),Muti-Ply(3-7)corrugated

Cardboard,grey paperboard,paperboard over300 GSM





Machine Layout:



Mastro Paper Laminating Machine High Speed 30 - 150m/min SDX-M1450 0



Model SDX-M1450(1450*1450mm)
A 2630
B 2164
C 1746
D 1660
E 5724
F 1450
H 12744
I 2492
