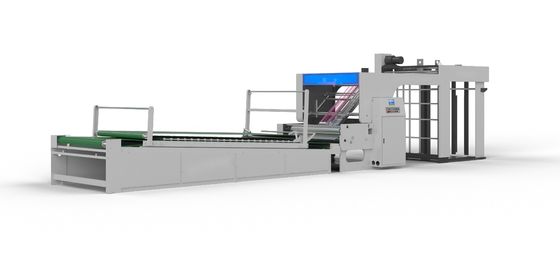

220V 380V 415V Mastro Paper Laminating Machine 30 - 150m/min High Speed SDX-M1180

I'm Online Chat Now

220V 380V 415V Mastro Paper Laminating Machine 30 - 150m/min High Speed SDX-M1180

220V 380V 415V Mastro Paper Laminating Machine 30 - 150m/min High Speed SDX-M1180
220V 380V 415V Mastro Paper Laminating Machine 30 - 150m/min High Speed SDX-M1180

Large Image :  220V 380V 415V Mastro Paper Laminating Machine 30 - 150m/min High Speed SDX-M1180

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SDX-M1180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

220V 380V 415V Mastro Paper Laminating Machine 30 - 150m/min High Speed SDX-M1180

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Max. Paper Size: 1180 X 1180 Mm Min. Paper Size: 350 X 350 Mm
Thickness Of Top Sheet: 120-600g/m2 Thickness Of Bottom Sheet: 0.5-10 Mm
Speed: 30~150m/min
High Light:

Paper Laminating Machine 30m/Min

,

380V Paper Laminating Machine

Mastro High-speed Laminator

Model: SDX-M1180


Performance Feature:

  • Water is applied evenly on backside of bottom paper
  • Automatic grease lubrication
  • Paper pallets loaded to feeder by forklift



Back feeder-Technical Data:



Model SDX-M1180
Max.Paper size 1180*1180mm
Min.Paper size 350*350mm
Thickness of top sheet 120-600g/m2
Thickness of bottom sheet 0.5-10mm
Speed 30~150 m/min
Accuracy ±1.5mm
Machine Weight 6500Kgs
Dimension(L*W*H) 11994*2242*2630mm
Power AC380/50HZ/18.5kw
Suitable Paper

Singleface(fluteA-G),Muti-Ply(3-7)corrugated

Cardboard,grey paperboard,paperboard over300 GSM





Machine Layout:



220V 380V 415V Mastro Paper Laminating Machine 30 - 150m/min High Speed SDX-M1180 0



Model SDX-M1180(1180*1180mm)
A 2630
B 1914
C 1746
D 1660
E 5474
F 1200
H 11994
I 2242
