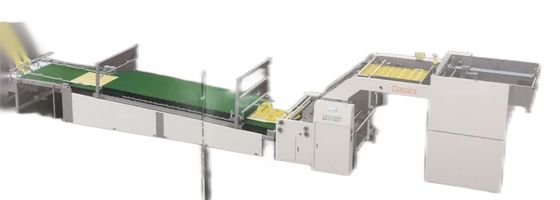

High Speed 30 - 150m/min Paper Laminating Machine Leading Edge Feeder SDX-2100

I'm Online Chat Now

High Speed 30 - 150m/min Paper Laminating Machine Leading Edge Feeder SDX-2100

High Speed 30 - 150m/min Paper Laminating Machine Leading Edge Feeder SDX-2100
High Speed 30 - 150m/min Paper Laminating Machine Leading Edge Feeder SDX-2100

Large Image :  High Speed 30 - 150m/min Paper Laminating Machine Leading Edge Feeder SDX-2100

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SDX-2100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

High Speed 30 - 150m/min Paper Laminating Machine Leading Edge Feeder SDX-2100

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Max. Paper Size: 2100 X 2100 Mm Min. Paper Size: 500 X 450 Mm
Thickness Of Top Sheet: 120-600g/m2 Thickness Of Bottom Sheet: 0.5-10 Mm
Speed: 30~150m/min
High Light:

150m/Min Paper Laminating Machine

,

Paper Laminating Machine CE

Classic High-speed Laminator (Leading Edge Feeder)

Model: SDX-2100



Dimension:

Model SDX-2100
Max.Paper size 2100*2100mm
Min.Paper size 500*450mm
Thickness of top sheet 120*600g/m2
Thickness of bottom sheet 0.5-10mm
Accuracy ±1.5mm
Max.Speed 30~150m/min
Power AC380/50HZ/29kw
Weight 8500kgs
Dimension(L*W*H) 17610*2923*2180mm



Machine Layout:

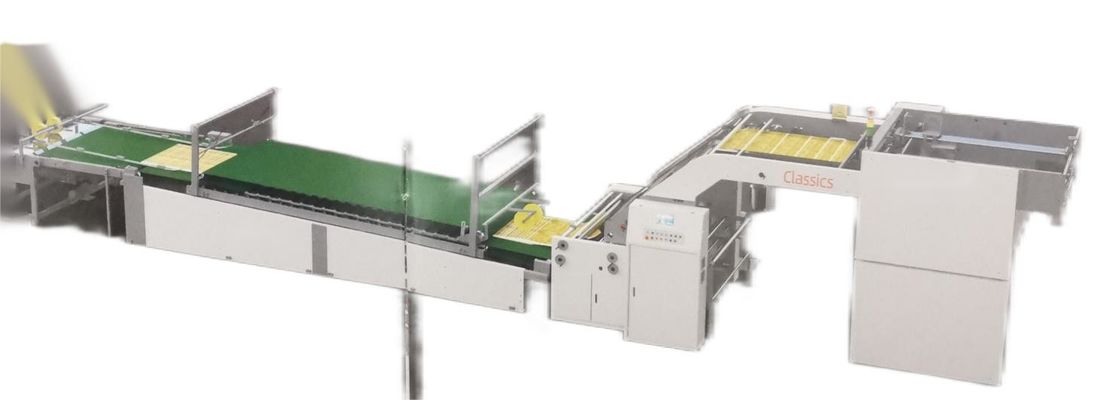

High Speed 30 - 150m/min Paper Laminating Machine Leading Edge Feeder SDX-2100 0
