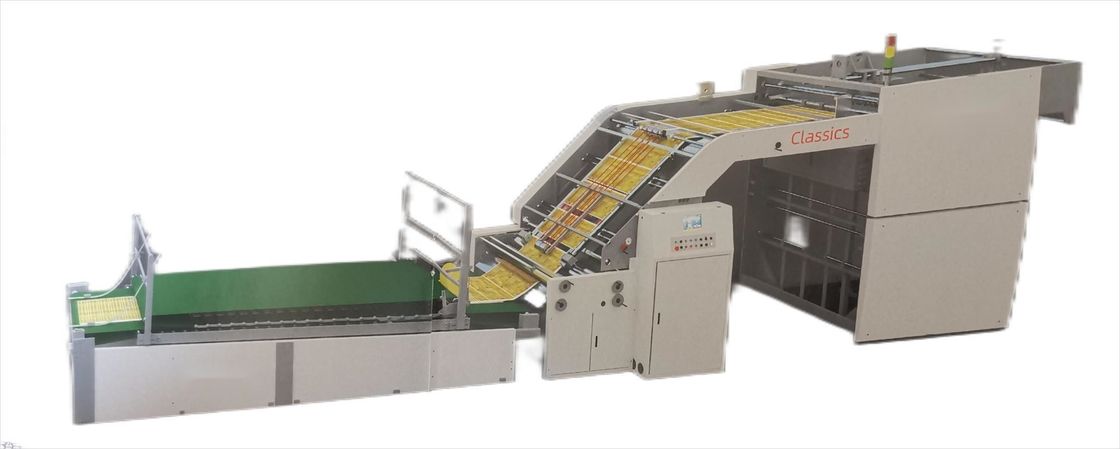

Classic High Speed Paper Laminating Machine 30 - 170m/min SDX-1650

I'm Online Chat Now

Classic High Speed Paper Laminating Machine 30 - 170m/min SDX-1650

Classic High Speed Paper Laminating Machine 30 - 170m/min SDX-1650
Classic High Speed Paper Laminating Machine 30 - 170m/min SDX-1650

Large Image :  Classic High Speed Paper Laminating Machine 30 - 170m/min SDX-1650

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SDX-1650
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

Classic High Speed Paper Laminating Machine 30 - 170m/min SDX-1650

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Max. Paper Size: 1650 X 1650 Mm Min. Paper Size: 400 X 350 Mm
Thickness Of Top Sheet: 120-600g/m2 Thickness Of Bottom Sheet: 0.5-10 Mm
Speed: 30~170m/min
High Light:

Classic Paper Laminating Machine

,

Paper Laminating Machine 170m/Min

Classic High-speed Laminator

Model: SDX-1650



Back feeder-Technical Data:

Model SDX-1650
Max.Paper size 1650*1650mm
Min.Paper size 400*350mm
Thickness of top sheet 120-600g/m2
Thickness of bottom sheet 0.5-10mm
Speed 30~170m/min
Accuracy ±1.5mm
Machine Weight 7500Kgs
Dimension(L*W*H) 15014*2692*2630mm
Power AC380/50HZ/28kw
Suitable Paper Single face (flute A-G), Muti-Ply (3-7) corrugated cardboard, gray paperboard, paperboard over 300gsm



Machine Layout:



Classic High Speed Paper Laminating Machine 30 - 170m/min SDX-1650 0



Model SDX-1650 (1650*1650mm)
A 2630
B 2364
C 2770
D 1610
E 6520
F 1750
H 15014
I 2692
