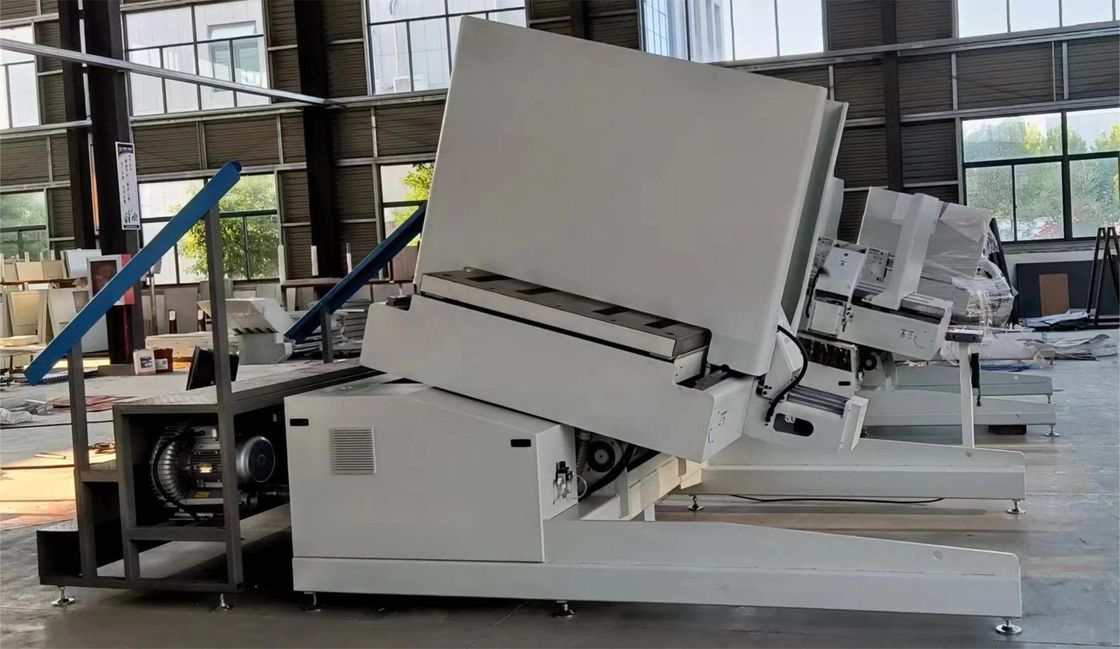

Automatic Pile Turner SDX-PT1650

Automatic Pile Turner SDX-PT1650
Automatic Pile Turner SDX-PT1650

Large Image :  Automatic Pile Turner SDX-PT1650

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: SDX-PT1650
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

Automatic Pile Turner SDX-PT1650

Power Supply: 380V OR 220V OR 415V Color: Customized
Max. Paper Size: 1650 X 1200 Mm Min. Paper Size: 600x500 Mm
Max. Stack Height (With Tray): 1500mm Min. Stack Height (With Tray): 750mm
Max. Blowing Length: 1370mm

Automatic Pile Turner
Model: SDX-PT1650



  • Automatic paper pile turner is an automatic device that turns the single paper pile before and after printing by 180 degrees, the paper edge is 90degrees neat, and the paper pile is changed into a specialtray. when double- sided printing,the paper pile is automatically turned over.
  • This device adopts automatic one-button start operation, thus reducing labor intensity, saving labor, and imp roving production efficiency.

Function & Configuration:

  • Equipped with 4 automatic operation program modes
  • Equipped with 3-channel independent air blowing system
  • Equipped with side gauge automatic movement system
  • Equipped with man-machine interface testing and parameter debugging system
  • Equipped with tray centering function
  • Equipped with wireless remote control operating system
  • Equipped with operation warning system
  • Equipped with blowing and non-winding coupling system
  • Equipped with vibration step-less frequency modulation system
  • Equipped with step-less pressure regulation system
  • Equipped with oil pressure non-winding coupling system
  • Equipped with digital damping pressure control system
  • Equipped with step-less speed regulation system of blowing speed
  • Equipped with upper and lower tray reduction system
  • Equipped with power-off automatic program memory system
  • Equipped with side gauge automatic paper detection system
  • Adopt PCB integrated wiring system


Machine Technical Parameter:

Model SDX-PT1650
Maximum paper size 1650*1200mm
Minimum paper size 600*500mm
Maximum stack height (With tray) 1500mm
Maximum stack height (With tray) 750mm
Maximum blowing length 1370mm
Wind pressure 40KPA
Flow 2480m3/H
Number of blowers 4
Power supply AC380V
Three-phase five-wire 40A
Total power 22KW
Total weight ≈4100KG



Machine Layout:
Request user to prepare:

1.AC380V three-phase five wire

2. Non-leakage circuit breaker 63A is installed externally

3. Main power cable 10mm2

4. Main power cable protection corrugated pipe PA-AD34.5


Automatic Pile Turner SDX-PT1650 0

Automatic Pile Turner SDX-PT1650 1
