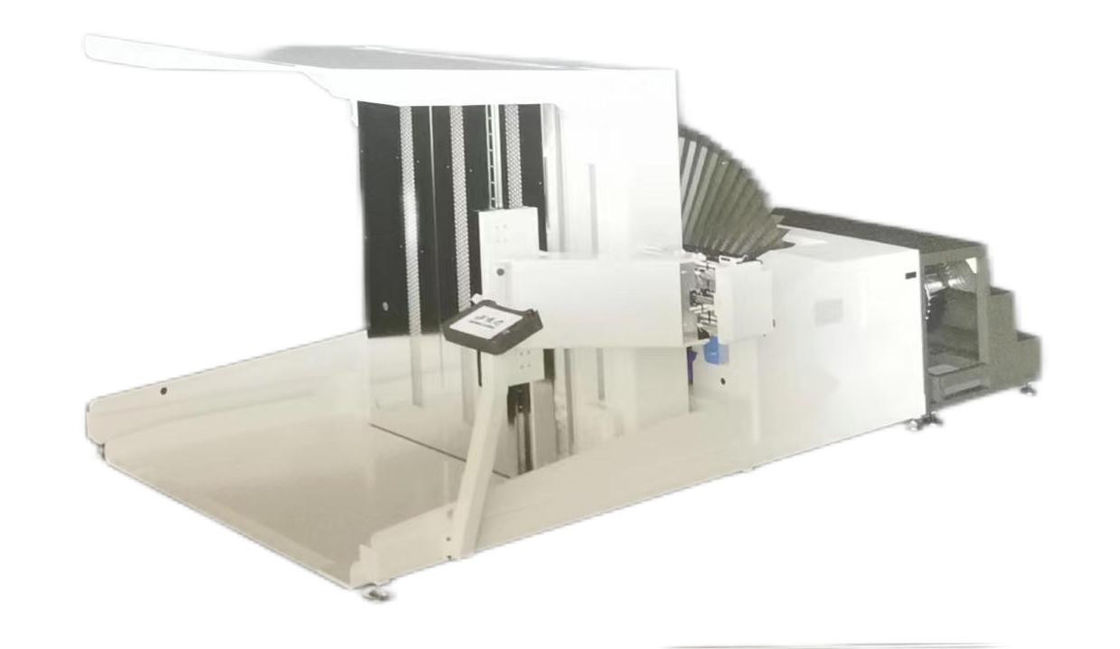

SDX-PT1250 Automatic Pile Turner Machine With Operation Warning System

Automatic Pile Turner

Model: SDX-PT1250

Features:

• Automatic paper pile turner is an automatic device that turns the single paper pile before and after printing by 180 degrees, the paper edge is 90degrees neat, and the paper pile is changed into a specialtray. when double- sided printing,the paper pile is automatically turned over.
• This device adopts automatic one-button start operation, thus reducing labor intensity, saving labor, and imp roving production efficiency.

Function & Configuration:

• Equipped with 4 automatic operation program modes
• Equipped with 3-channel independent air blowing system
• Equipped with side gauge automatic movement system
• Equipped with man-machine interface testing and parameter debugging system
• Equipped with tray centering function
• Equipped with wireless remote control operating system
• Equipped with operation warning system
• Equipped with blowing and non-winding coupling system
• Equipped with vibration step-less frequency modulation system
• Equipped with step-less pressure regulation system
• Equipped with oil pressure non-winding coupling system
• Equipped with digital damping pressure control system
• Equipped with step-less speed regulation system of blowing speed
• Equipped with upper and lower tray reduction system
• Equipped with power-off automatic program memory system
• Equipped with side gauge automatic paper detection system
• Adopt PCB integrated wiring system

Machine Technical Parameter:

Machine Layout:
Request user to prepare:

1.AC380V three-phase five wire

2. Non-leakage circuit breaker 63A is installed externally

3. Main power cable 10mm2

4. Main power cable protection corrugated pipe PA-AD34.5
