Electric drive 3 In 1 Automatic Flute Laminating Machine BZJ-1600S5

I'm Online Chat Now

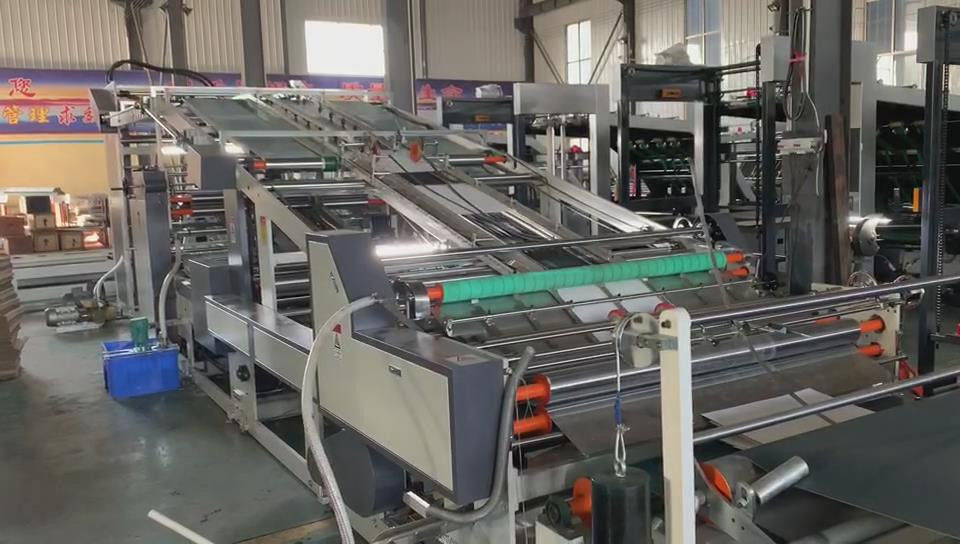

Electric drive 3 In 1 Automatic Flute Laminating Machine BZJ-1600S5

Electric drive 3 In 1 Automatic Flute Laminating Machine BZJ-1600S5
Electric drive 3 In 1 Automatic Flute Laminating Machine BZJ-1600S5

Large Image :  Electric drive 3 In 1 Automatic Flute Laminating Machine BZJ-1600S5

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: BZJ-1600S5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

Electric drive 3 In 1 Automatic Flute Laminating Machine BZJ-1600S5

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Max. Sheet Size: 1600 X 1100 Mm Min. Sheet Size: 450x420 Mm
Max. Speed: 80 M/min Laminating Accuracy: +/-2.5mm
Voltage: 220V Or 380V Or 415V
High Light:

3 In 1 Automatic Flute Laminating Machine

,

Electric Automatic Flute Laminating Machine

Automatic 3 in 1 flute laminator

Model: BZJ-1600S5



Distinguishing feature:

After service: Engineers available to service machinery overseas
Driving type Electric drive
Automation Automatic control





Characteristics:

  • Double bottom sheet feeder, can do 5-ply board laminating directly;
  • Rear aligning device;
  • Frequency converter control speed;
  • PLC control whole machine;
  • Double servo motor control the bottom sheet feeding;
  • Higher center design of gluing roller;
  • Glue doctor roller with knurling surface;
  • Automatic glue supplying and circulating;
  • Automatic feeder;
  • Surface paper stacking height could be 1.5m.
  • Stacking table can lift automatically when feeding.
  • Automatic counter.
  • Synchronous belt for transmitting, can keep high laminating precision.



Specification:



Model BZJ-1600S5
Max. sheet size 1600x1100 mm
Min. sheet size 450x420 mm
Top paper grammage 150-800gsm
Bottom sheet grammage Over 350gsm
Bottom paper thickness 0.5-10mm
Max. speed 0-80 m/min
Laminating accuracy +/-2.5mm
Power 380V, 30HP
Machine weight 10800KG
Machine dimension 17336x2650x2600mm
