Product Details:
|
| Power Supply: | 380V OR 220V OR 415V | Color: | Customized |
|---|---|---|---|
| Label Width: | 50-600mm | Label Laminating Speed: | 25-35 Times/min |
| Label Paper Grammage: | 105-157gsm For 18 Inch Long Paper Tube, Label Paper Grammage Should Be Not Less Than 128gsm | Thickness Of Paper Tube: | 0.7-5mm |
| Voltage: | 220V Or 380V Or 415V | ||
| High Light: | Paper Tube Label Laminating Machine 220V,Paper Tube Label Laminating Machine 50Hz |
||

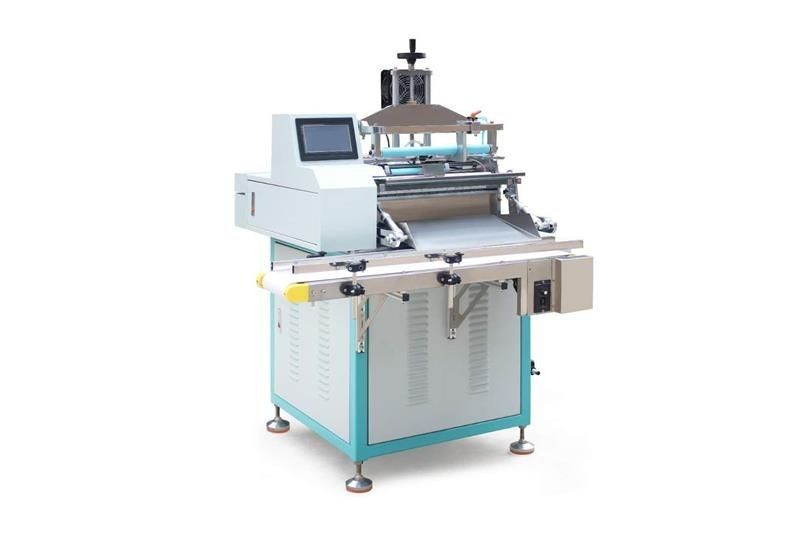

Paper tube label laminating machine
Model: SLTB-600X
Characteristics:
Specification:
| Inner diameter of paper tube | 35-130mm |
| Thickness of paper tube | 0.7-5mm |
| Label width | 50-600mm |
| Label laminating speed | 25-35 times/min |
| Label laminating accuracy | +/-0.3-1mm (smaller inner diameter, higher accuracy) |
| Label paper grammage |
105-157gsm For 18 inch long paper tube, label paper grammage should be not less than 128gsm |
| Total power | 3KW |
| Heater power | 2.7KW |
| Control method | PLC + temperature control module |
| Operator quantity | 1 |
| Voltage | 220V, 50Hz |
| Dimension | 1400x1000x1600mm |
| Weight | NW 350KG, GW 390KG |
| Air pressure | 0.3-0.5KPa |
