Product Details:
|
| Voltage: | 220V Or 380V Or 415V | Color: | Customized |
|---|---|---|---|
| Max.Diameter Of Unwinding: | Φ1400mm | Max. Cutting Width: | 800mm |
| Cutting Length: | 20-1200mm | Cutting Speed: | 50-180times/min (without Slitting) Or 60-140 Times/min (with Slitting) |
| Highlight: | 8KW Jumbo Roll Paper Cutting Machine,Jumbo Roll Paper Cutting Machine 50HZ,A4 Paper Cutter Machine 50HZ |
||

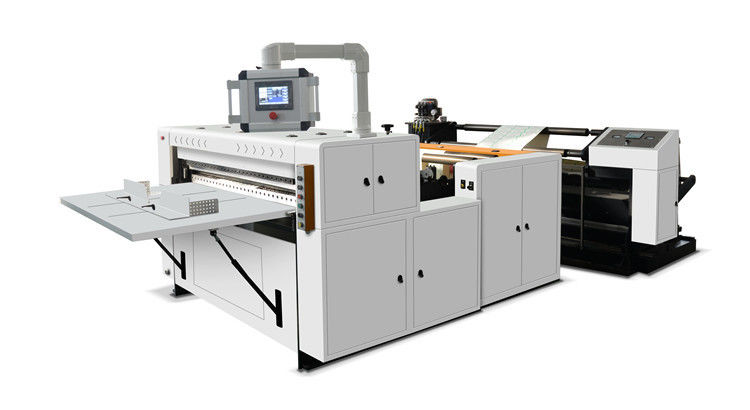

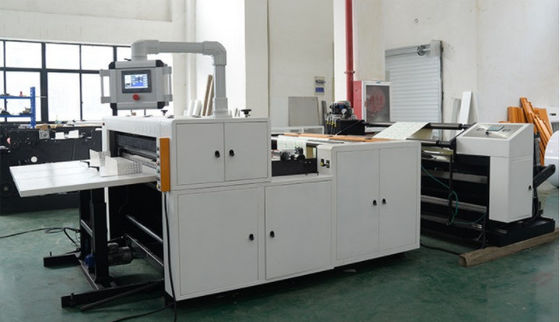

Sheet Cutter
Model: SCB-800
Characteristics:
This machine suitable for a lot of paper, A4/A3 paper, hamburg paper, film laminated etc. best jumbo roll cutting machine.
Specification:
| Model | SCB-800 |
| Max.Diameter of Unwinding | Φ1400mm |
| Max. Cutting Width | 800mm |
| Cutting Length | 20-1200mm |
| Cutting speed (without slitting) | 50-180times/min |
| Cutting speed (with slitting) | 60-140 times/min |
| Paper GSM | 35-350g |
| Cross cutting accuracy | ±0.2mm |
| Total Power | About 8KW |
| Compressed air (≥3KW) | 0.6-0.8MPa (Customer provide) |
| Power voltage (3 phase, 4 wires) | 380V / 220V / 440V, 50HZ, |
| Machine dimension (L×W×H) | 5050×1500×1850mm |
| Machine weight | 4000KG |
Machine configuration
1. Control way: through PLC tape control way
2. Unwinding use 3#air shaft( shaftness 3-6# is customizable) (1 sets)
3. Driver roller use aluminum roller, through static balanced aluminum alloy guide roller
4. Base material position can be adjust.
5. Automatic air shaft loading equipment structure system
6. Unwinding use photocell control edge position control system(1 sets)
Manual paper collecting stand
