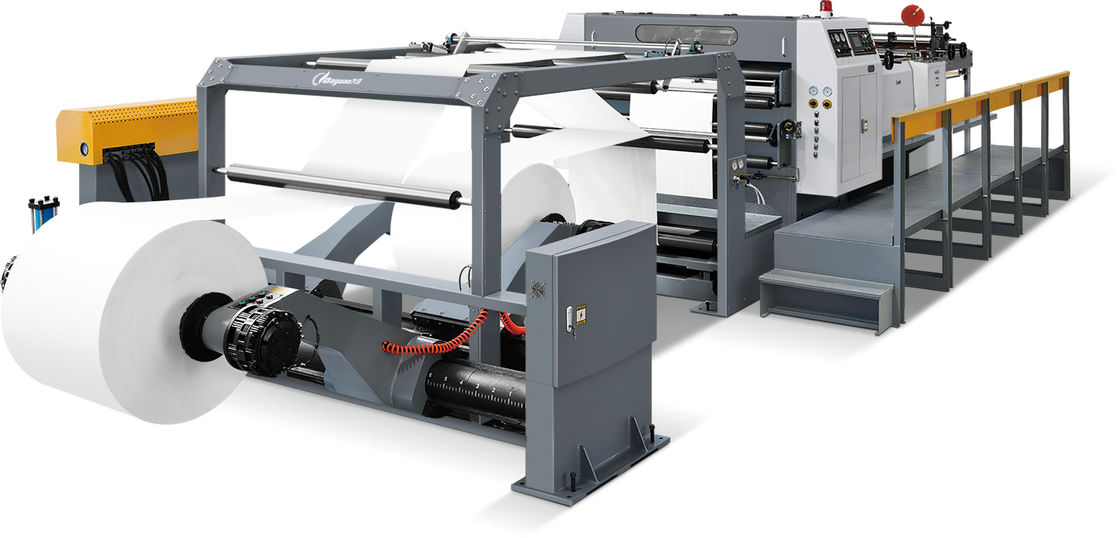

High Speed Two Rolls Paper Sheet Cutter Machine Servo Precision Paper Cutter Machine

I'm Online Chat Now

High Speed Two Rolls Paper Sheet Cutter Machine Servo Precision Paper Cutter Machine

High Speed Two Rolls Paper Sheet Cutter Machine Servo Precision Paper Cutter Machine
High Speed Two Rolls Paper Sheet Cutter Machine Servo Precision Paper Cutter Machine

Large Image :  High Speed Two Rolls Paper Sheet Cutter Machine Servo Precision Paper Cutter Machine

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: GM-1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 80 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

High Speed Two Rolls Paper Sheet Cutter Machine Servo Precision Paper Cutter Machine

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Cutting Type: The Up Knife Cut Reciprocally, The Down Knife Is Fixed Applicable Range Of Paper: 60-550gsm
Max. Paper Roll Diameter: 1800mm Max. Paper Cutting Width: 1400mm
Range Of Cutting Length: 450-1650 Mm
High Light:

High Speed Paper Sheet Cutter Machine

,

Two Rolls Paper Sheet Cutter Machine

,

Servo Precision Paper Cutter Machine

Servo Precision High Speed Sheet Cutter Machine

Model: GM-1400 (two rolls)



Brief Introduction :

The GM series Servo Precision High Speed Sheet Cutter Machine can efficiently complete slitting, rip cutting and trimming of products, as well as maintaining the highest precision and product quality.

The GM series paper roll slitting machines are well equipped and almost can adapt to all die cutting requirements of products.

  • Adopt nodular cast iron-QT500-7, original paper frame clamp arms casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of original paper frame clamp arms.
  • Adopt steel plate-Q335 , the mainframe wallboard has precision manufacturing and high strength, thus will never-deformed.
  • The machine uses SKFNSK imported original bearing.
  • The machine uses original parts imported from France Schneider, and Japanese OMRON, etc.
  • The conveyor belt is imported from Japan.
  • Die cutting accuracy reach to ± 0.5mm, the highest speed of GM series machine reaches 350 sheet/min.
  • The back cutter is adopt Germany Ni-Cr-Mo metal steel, with high precision and will never- deforms; the knife edge is easy to adjust and calibrate.
  • Use the automatic angle-aligning system to realize fast angle aligning of worksheet.
  • Equipped with Dayuan first-developed anti-curve automatic regulation device, ensure fast and smooth when they adjust of anti-curved paper.
  • Paper feeding part adopts pre-pressing device, to ensure that the paper is not wrinkled.
  • Equip with touch-screen operation interface in both Chinese and English.
  • Adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.


Specification:

Machine name

Servo Precision High Speed Sheet Cutter Machine

Model

GM-1400

Cutting type:

The up knife cut reciprocally, the down knife is fixed

Applicable range of paper:

60-550 GSM

Max. paper roll diameter:

1800mm(71”)

Max. paper cutting width:

1400mm

Range of cutting length:

450-1650 mm

Cutting sheet number:

2 sheet

Cutting Precision:

The cutting length≤1000mm is:±0.5mm

The cutting length﹥1000mm is:±0.1%

Max cutting speed:

350 cuts/min

Max cutting meter speed:

350 m/min

Max paper stacking height:

1500mm

Air pressure source demand:

0.8Mpa

Design power:

380v/220v X 50hz
