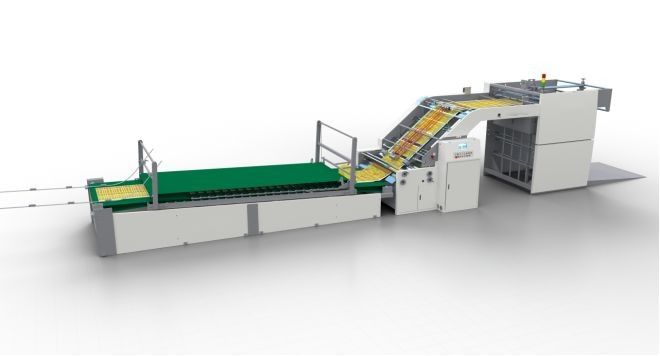

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200

I'm Online Chat Now

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200
18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200

Large Image :  18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SDX-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200

Description
Power Supply: 380V OR 220V OR 415V Color: Customized
Top Sheet Grammage: 120-600gsm Bottom Thickness: 0.5-10mm Flute A-F 2/3/5 Corrugated Board Gray Paper Board Cardboard
Laminating Accuracy: ±0.5mm (subject To Paper Cutting Precision) Speed: 150m/min (Subject To Board Quality And Specification)
Voltage: 220V Or 380V Or 415V
High Light:

High Speed Litho Laminator Machine

,

18.5KW Litho Laminator Machine

High-speed Litho Laminator

(Synchronous Servo-driven)



Main Features:

  • Computerized high-speed lamination at max. Speed of 12000 sheets per hour (Paper length:600mm)
  • Leading--edge Litho Feeder ensures stable running at high speed and no extra adjustment for different job.
  • Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.
  • Gluing System: High-precision gluing rollers, glue side stopper, auto glue level controller no overflow at high speed and glue recirculation system.
  • Compensation Aligning System: multiple sensors detect relative position of bottom paper while servo motors ensure dependent upper paper delivery compensation to guarantee precise aligning of two sheets.
  • Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition, irregularities and job record. CE certified.



Specification:

Model SDX-1200
Max. 1180x1180mm
Min. 340x380mm
Top sheet grammage 120-600gsm
Bottom thickness

0.5-10mm Flute A-F 2/3/5 corrugated board

gray paper board

cardboard

Laminating accuracy

±0.5mm

(subject to paper cutting precision)

Speed 150m/min (Subject to board quality and specification)
Power 18.5KW
Weight 6000KG
Dimension(mm) 13700x1960x2560



**Specifications are subject to change without notice

  • Laminating tolerance. If paper quality and cut is good and precise enough, and at the speed of 9000 sheets/hour, the laminator can reach as well as 1.0mm tolerance or less.
  • The knurled stainless-steel gluing roller can guarantee the glue consumption normally ranging from 25-30gsm subject to operator’s skills and types of corrugated paper.



Servo-control shaftless Back Feeder:

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200 0

  • With Yaskawa servo control, no extra adjustment for different sheet sizes, paper weight ranges from 120 gsm to 600 gsm, easy to operate.
  • Unique Over-lapping paper feeding and delivery ensures low gsm paper running smoothly;
  • Pre-loading device by rail equipped as standard.



Bottom sheet feeding section:

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200 1

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200 2

  • Equipped with two Yaskawa servo motors, one is for accurate paper feeding timing, another is for controlling intermittent air suction for better bigger size paper feeding.
  • Big air blower and separate belt holders ensure smooth feeding of 2ply,3ply,4ply, 5ply and cardboard, no vibration of belt holder.



Servo motor assembly to ensure accurate and strengthened suction:

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200 3



Gluing section:

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200 4

  • High precise coating stainless steel roller mechanism assures even glue applied.
  • Special mechanism ensures paper stripping off the gluing roller, easy to clean, dismantle and adjust
  • Three sensors to control the glue volume level automatically.
  • Side Glue stopper ensures no overflow at high speed and glue re-circulation at high speed.



Register section:

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200 5

  • Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors (Japanese Yaskawa brand) adjust the top sheets synchronously to make accurate register during lamination.



Transmission system:

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200 6

  • Multi Power transmission evenly distributed by gears and belts combination, maintenance free, low noise, high efficiency
  • Main gears for gluing rollers are made from Taiwan company.



Pressing conveyor:

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200 7

  • The laminated sheets collected by press conveyor as standard for perfect bonding.
  • The conveyor speed is adjustable by one motor as per the machine speed.



Touch Screen:

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200 8

  • Man-machine interface (Proface) with PLC touch-screen control, warning light indicator, automatic monitoring of production condition, irregularities and job record.



Control Panel:

18.5KW High Speed Litho Laminator Machine Synchronous Servo Driven SDX-1200 9
