Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: CSM-3000HD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Heavy Duty AAA Tri-Wall Corrugated Converting Machine Manual Slotting Creasing Machine

Description
Suitable Corrugated Board Thickness: 12-20mm Flute Type: AA And AAA
Max. Allowed Board Width: 3000mm Max. Slotting Depth: 640mm
Slotting Blade Thickness: 15mm Max. Creasing Width: 1600mm
Voltage: 220V Or 380V Or 415V Blade Regulating Method: Manual Regulating
Color: Customized
High Light:

Heavy Duty Corrugated Converting Machine

,

AAA Corrugated Converting Machine

,

Manual Corrugated Slotting Creasing Machine

3000mm heavy duty AAA Tri-wall manual corrugated board creasing and slotting machine

Model: CSM-3000HD
Quick Detail:

  • After service: Engineers available to service macinery overseas
  • Driving type: Electric drive
  • Automation: Semi-automatic control
  • Package: Steel pallet and covered with plastic film
  • Machine status: 100% NEW
  • HS Code: 84411000
  • Delivery time: 40 days
  • Operator quantity: 2 persons
  • Technician quantity for commissioning: 1 technician
  • Time for commissioning: 1 day


Description:

  • This 3000mm heavy duty AAA Tri-wall manual corrugated board creasing and slotting machine is designed for creasing and slotting synchronously on high strength AA, AAA, AAAA corrugated board which thickness is 10-20mm.
  • The tri-wall corrugated board creasing and slotting machine is a type of industrial machinery used in the production of corrugated cardboard boxes. The tri-wall corrugated cardboard is made with seven layers of paper, with three wavy middle layer flutes between four flat layers. The creasing and slotting machine is used to create the scored folds and slots to fold and assemble the cardboard into finished boxes
  • It is most suitable for converting the tri-wall corrugated board. Because the machine body is made with iron casting material which can provide high strength, when doing creasing, the creasing tool can press the AAA heavy duty corrugated board easily without any damage.
  • Slotting blade thickness is 15mm, this tickness is designed for AAA corrugated board and it is also workable for AA (double wall) and AAAA (four walls) heavy duty corrugated board.
  • Voltage of 220V, 380V and 440V all are available, we can make it as per customer’s requirement. Customer just need to confirm it after before shipment.
  • The creasing tool and slotting blade can be regulated by hand. Usually the right side slotting blade position is fixed, don’t need to adjust it. We just adjust the left side slotting blade as per actual box height. Or sometimes we have to move the slotting blade to side and do creasing job only.
  • The machine works by first feeding the corrugated board by hand to prepare it for processing. The board is then fed through a creasing tool and slotting blades, which cut and score the board as needed to create the desired folds and slots. The machine is typically operated by a skilled technician who can adjust the settings and blades as needed to produce boxes of different sizes and shapes.
  • The use of a tri-wall corrugated board creasing and slotting machine can greatly increase the box production efficienc, allowing for the creation of large quantities of boxes in a short amount of time. Additionally, the machine can help ensure that boxes are produced with consistent quality and precision, which is important for meeting the needs of customers and ensuring the safe transport of goods.


Specification:


ModelCSA-3000HD
Cutting speed15-20 cut/min
Max sheet height3000mm
Sheet widthNo limit
Standard creasing length1600mm
Max. Slotting depth600mm for each side
Thickness of slotting blade15mm
Length of slotting blade640mm
Creasing width5mm
Working table length8000mm
Machine body thickness40mm
One-key order change time5-10 sec
Total power4KW
Machine dimension9000x4000x1850mm
Machine weight2470KG



Notices:

There are several important safety precautions need to be taken when operating the tri-wall corrugated board creasing and slotting machine.

  • First of all, the machine should only be operated by trained and authorized personnel who are familiar with the machine's operation and safety procedures. All operators have to wear appropriate personal protective equipment (PPE), such as safety glasses, gloves, and ear protection, to protect themselves from potential hazards.
  • It is important to ensure that the machine is properly maintained and that all guards and safety devices are in place and functioning properly. The area around the machine should be kept clean to prevent trips and falls.
  • When feeding the board into the machine, operators should use caution and keep their hands and other body parts away from the cutting and creasing blades. It is also important to make sure the board is aligned and secured before opeating the machine.
  • The machine is equipped with an emergency stop button that can quickly shut down the machine in case of a safety issue happen.
  • By following these safety precautions and operating the machine properly, could ensure a safe and efficient production process.


Applications:



The tri-wall corrugated board creasing and slotting machine is used in the production of heavy duty corrugated boxes. These boxes are used for a wide range of applications, including packaging and shipping of goods in various industries such as:

  • Industrial and manufacturing: Tri-wall corrugated boxes are used to transport and store industrial and manufacturing products, such as machinery parts, chemicals, and construction materials.
  • Automotive: Tri-wall corrugated boxes are used to transport and store automotive parts and accessories, such as engine components and tires.
  • Healthcare: Tri-wall corrugated boxes are used to package and transport medical supplies and equipment, such as surgical instruments and pharmaceuticals.

The tri-wall corrugated board creasing and slotting machine is an necessary equipment in the production of heavy duty boxes, as it allows for the precise cutting and scoring of the corrugated board to create the necessary folds and slots for assembly.

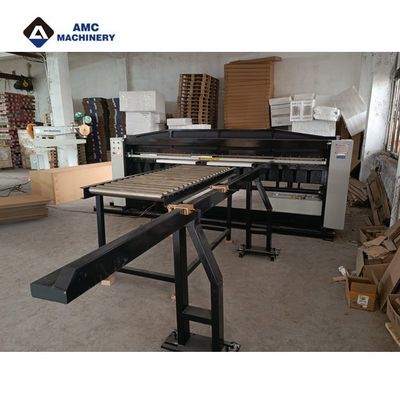

Heavy Duty AAA Tri-Wall Corrugated Converting Machine Manual Slotting Creasing Machine 0

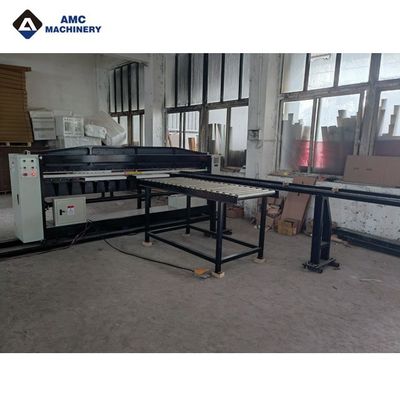

Heavy Duty AAA Tri-Wall Corrugated Converting Machine Manual Slotting Creasing Machine 1

Heavy Duty AAA Tri-Wall Corrugated Converting Machine Manual Slotting Creasing Machine 2

Heavy Duty AAA Tri-Wall Corrugated Converting Machine Manual Slotting Creasing Machine 3
