Manual Paper Board Glue Pasting Machine Heavy Duty VDF inverter system JS-2500

I'm Online Chat Now

Manual Paper Board Glue Pasting Machine Heavy Duty VDF inverter system JS-2500

Manual Paper Board Glue Pasting Machine Heavy Duty VDF inverter system JS-2500
Manual Paper Board Glue Pasting Machine Heavy Duty VDF inverter system JS-2500

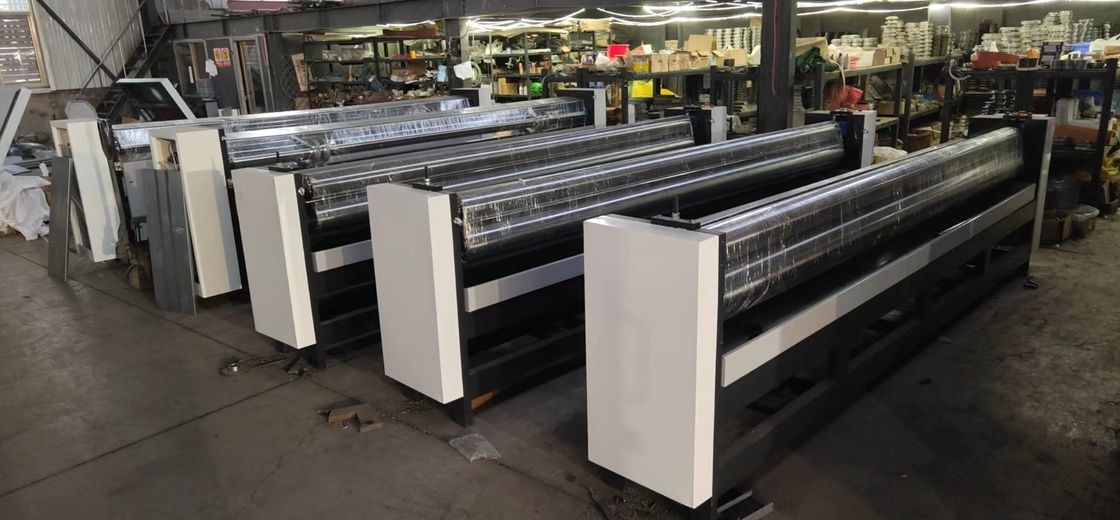

Large Image :  Manual Paper Board Glue Pasting Machine Heavy Duty VDF inverter system JS-2500

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: JS-2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Manual Paper Board Glue Pasting Machine Heavy Duty VDF inverter system JS-2500

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Gluing Width: 2500mm Gluing Speed: 500rpm
Products Material: Corrugated Board Of Kraft Liner / Virgin Liner / Medium Paper
High Light:

Manual Glue Pasting Machine

,

Manual Paper Board Pasting Machine

,

Paper Gluing Machine Heavy Duty

Heavy duty manual glue pasting machine

Model: JS-2500



Characteristics:

This machine can glue on one side or double sides at one time.



SPECIFICATION:

Model JS-2500
Gluing width 2500mm
Gluing speed 500rpm
Products Material

Corrugated board of Kraft Liner

Virgin Liner

Medium paper

Speed control system VDF inverter system
Gum Roll Diameter

Top 114mm

Bottom 180mm

Pressure Roll Diameter 89mm
Drive Roll Diameter1 127mm
Roller Material Seamless steel tube
Machine Body Material Iron casting
Power 1.1KW
Electrical Connection 415V, 60Hz, Three phase
Machine weight about 550KG
Dimension 2950x1100x1000mm
