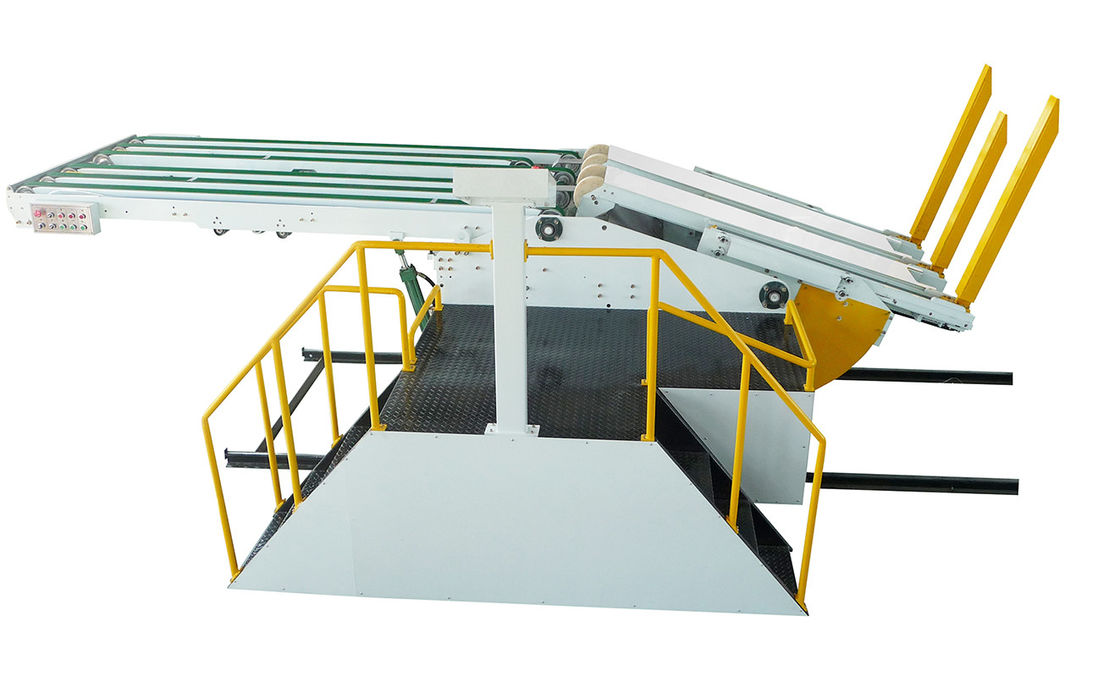

Hydraulic Driven Corrugated Converting Machine Auto Corrugated Sheet Feeder

Hydraulic Driven Corrugated Converting Machine Auto Corrugated Sheet Feeder
Hydraulic Driven Corrugated Converting Machine Auto Corrugated Sheet Feeder

Large Image :  Hydraulic Driven Corrugated Converting Machine Auto Corrugated Sheet Feeder

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SAPF-1628B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

Hydraulic Driven Corrugated Converting Machine Auto Corrugated Sheet Feeder

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Max. Machine Speed: 300sheets/min Suitable Working Speed: 180-250 Sheets/min
Max. Sheet Size: 1600x2900mm Max. Stacking Height: 1800mm
High Light:

Hydraulic Corrugated Converting Machine

,

CE Corrugated Converting Machine

,

Auto Corrugated Sheet Feeder

Auto Feeder

Model: SAPF-1628B



Characterisitcs:

  • Hydraulic driving lifting and transmitting
  • PLC control
  • The whole auto feeder can moving on rail
  • Stacker lifting automatically as per sheet stacking height
  • Feeder part lifting automatically as per sheet stacking height on lead edge feeding table



Specification:

Model SAPF-1628B
Max. machine speed 300 sheet/min
Suitable working speed 180-250 sheet/min
Max. sheet size 1600x2900mm
Max. stacking height 1800mm
Max. stacking weight 1500KG
Sheet lifting drive Hydraulic
Sheet stacker turning drive Hydraulic
Sheet transmitting part lifting drive Hydraulic
Transmitting belt driving motor Hydraulic motor
