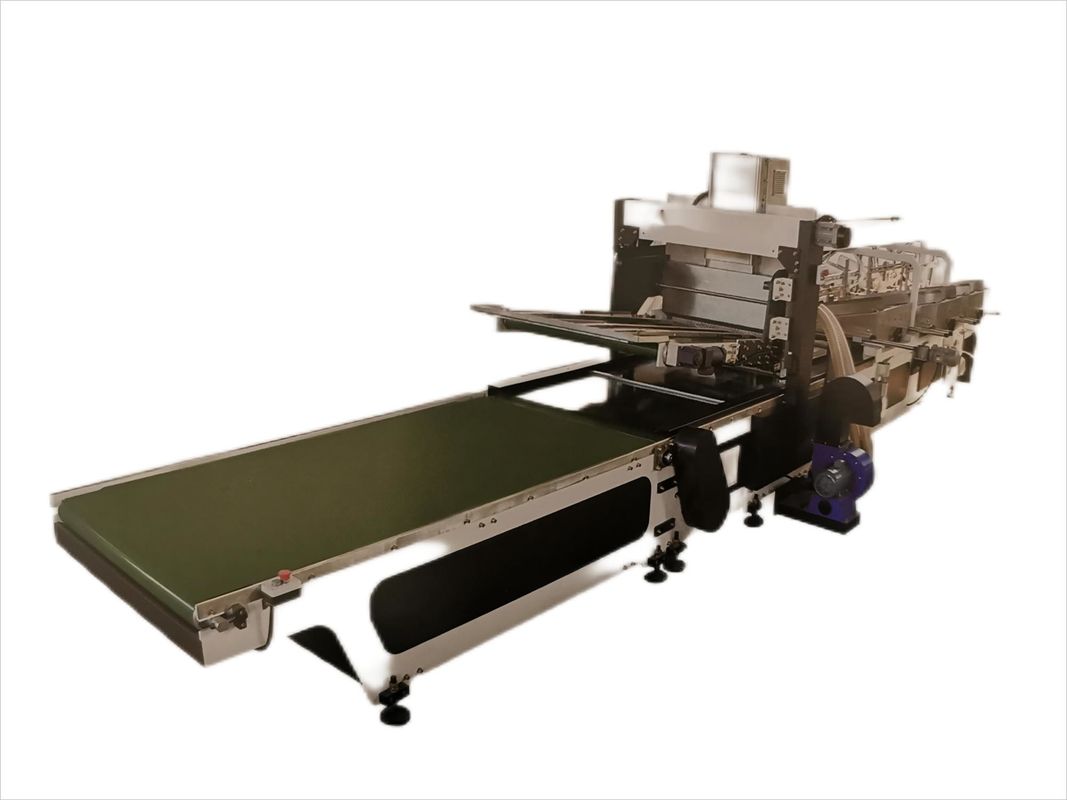

380V 50HZ Cardboard Automatic Partition Assembler Machine CGJ600-3X

I'm Online Chat Now

380V 50HZ Cardboard Automatic Partition Assembler Machine CGJ600-3X

380V 50HZ Cardboard Automatic Partition Assembler Machine CGJ600-3X
380V 50HZ Cardboard Automatic Partition Assembler Machine CGJ600-3X

Large Image :  380V 50HZ Cardboard Automatic Partition Assembler Machine CGJ600-3X

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: CGJ600-3X
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 40 working days
Payment Terms: T/T
Supply Ability: 5 sets per months

380V 50HZ Cardboard Automatic Partition Assembler Machine CGJ600-3X

Description
Voltage: 380V Or 220V Or 415V Color: Customized
Horizontal Inserting Width: A: 80-900mm Lengthways Sheets Length: B: 210-600mm
Clapboard Height: C: 45-160mm Lengthways Sheets Qty: 1-6
High Light:

Cardboard Partition Assembler Machine

,

Automatic Partition Assembler Machine

,

380V Automatic Partition Machine

Automatic Partition Assemblying Machine

Model: CGJ600-3X



Structure character:

  • Specially designed for shorter board.
  • Automatic inserting each kinds clapboard and block from 45mm to 160mm cell



Clapboard list:

380V 50HZ Cardboard Automatic Partition Assembler Machine CGJ600-3X 0



Technical specification of CGJ600-3X:

Idem specification
Horizontal inserting width: A Model CGJ600-3X
80-900mm single-position
80-420mm double-position
Lengthways sheets length: B 210-600mm
Clapboard height: C 45-160mm
Lengthways clapboard distance: D 20-400mm
Horizontal clapboard distance: E 45-850mm
Lengthways sheets qty 1-6
Horizontal clapboard qty 1-29
Carton inserting mouth width: F >Board thickness
Carton thickness: G 1.5-8mm



Can be customized based on customers’ request



Customer provided part:

  • Air pressure: work pressure 0.4-0.8Mpa.
  • Powder request: 380V 50HZ Three-phase four-wire system
  • Electric wire need join to operate cabinet, and pneumatic pipeline need join to main pneumatic pipeline.
  • Die-cutting clapboard for testing machine
  • Lubricate oil and grease for testing machine
  • Foundation work



Testing partition board should meet the following requirements:

Partition board molding: die-cutting molding

Partition board interval should have bevel/oblique opening (as showing in the following picture)



380V 50HZ Cardboard Automatic Partition Assembler Machine CGJ600-3X 1



Form for Customized machine

If customer needs the customized machine, please fill in the following form of your request:



Item
Number of the board on longitudinal direction (pcs)
Number of the board on lateral direction (pcs)
Lengthways sheets length B (mm)
Lengthways clapboard distance D (mm)
Lengthways clapboard edge distance H (mm)
Horizontal inserting width A (mm)
Horizontal clapboard distance E (mm)
Horizontal clapboard edge distance I (mm)
Clapboard height C (mm)
Corrugated thickness G (mm)
Corrugated inserting mouth width F (mm)

380V 50HZ Cardboard Automatic Partition Assembler Machine CGJ600-3X 2



380V 50HZ Cardboard Automatic Partition Assembler Machine CGJ600-3X 3
