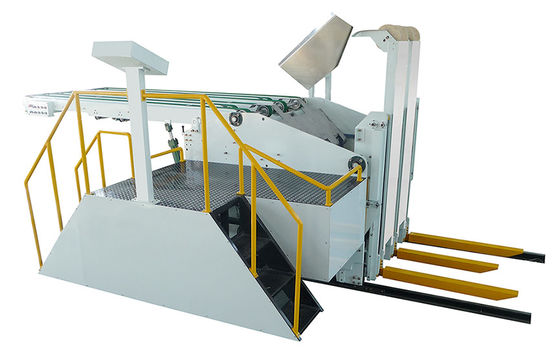

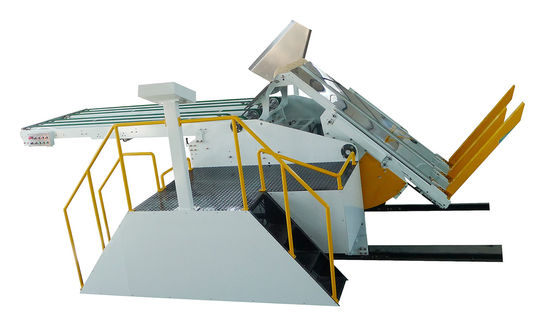

PLC Control Corrugated Converting Machine 300 sheets/min Auto Feeder SAPF-1228B

I'm Online Chat Now

PLC Control Corrugated Converting Machine 300 sheets/min Auto Feeder SAPF-1228B

PLC Control Corrugated Converting Machine 300 sheets/min Auto Feeder SAPF-1228B
PLC Control Corrugated Converting Machine 300 sheets/min Auto Feeder SAPF-1228B PLC Control Corrugated Converting Machine 300 sheets/min Auto Feeder SAPF-1228B

Large Image :  PLC Control Corrugated Converting Machine 300 sheets/min Auto Feeder SAPF-1228B

Product Details:
Place of Origin: CHINA
Brand Name: AMC MACHINERY
Certification: CE
Model Number: SAPF-1228B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Corrugated box and plastic film
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 5 sets per month

PLC Control Corrugated Converting Machine 300 sheets/min Auto Feeder SAPF-1228B

Description
Voltage: 220V Or 380V Or 415V Color: Customized
Max. Machine Speed: 300sheets/min Suitable Working Speed: 180-250 Sheets/min
Max. Sheet Size: 1200x2800mm Max. Stacking Height: 1800mm
High Light:

PLC Control Corrugated Converting Machine

,

Auto Corrugated Converting Machine

Auto Feeder

Model: SAPF-1228B



Characterisitcs:

  • Hydraulic driving lifting and transmitting
  • PLC control
  • The whole auto feeder can moving on rail
  • Stacker lifting automatically as per sheet stacking height
  • Feeder part lifting automatically as per sheet stacking height on lead edge feeding table



Specification:

Model SAPF-1228B
Max. machine speed 300 sheet/min
Suitable working speed 180-250 sheet/min
Max. sheet size 1200x2800mm
Max. stacking height 1800mm
Max. stacking weight 1500KG
Sheet lifting drive Hydraulic
Sheet stacker turning drive Hydraulic
Sheet transmitting part lifting drive Hydraulic
Transmitting belt driving motor Hydraulic motor
