Product Details:
|
| Voltage: | 220V Or 380V Or 415V | Color: | Customized |
|---|---|---|---|
| Design Speed: | 500rpm | Gluing Width: | 2500mm |
| Products Material: | Corrugated Board Of Kraft Liner, Virgin Liner, Medium Paper | ||
| Highlight: | Heavy Duty Paper Corrugator Machine,Manual Paper Corrugator Machine,500rpm Glue Pasting Machine |
||

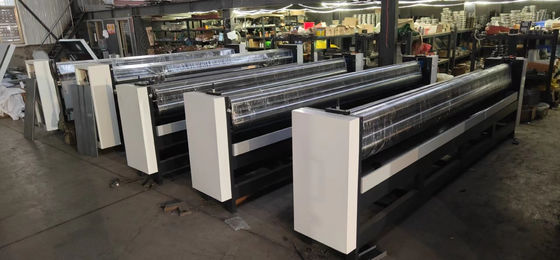

Heavy Duty Manual Glue Pasting Machin
Model: JS-2500
Characteristics:
This machine can glue on one side or double sides at one time.
Specifications:
| Model | JS-2500 |
| Gluing width | 2500mm |
| Gluing speed | 500rpm |
| Products Material |
Corrugated board of Kraft Liner Virgin Liner Medium paper |
| Speed control system | VDF inverter system |
| Gum Roll Diameter |
Top 114mm Bottom 180mm |
| Pressure Roll Diameter | 89mm |
| Drive Roll Diameter1 | 127mm |
| Roller Material | Seamless steel tube |
| Machine Body Material | Iron casting |
| Power | 1.1KW |
| Electrical Connection | 415V, 60Hz, Three phase |
| Machine weight | about 550KG |
| Dimension | 2950x1100x1000mm |
